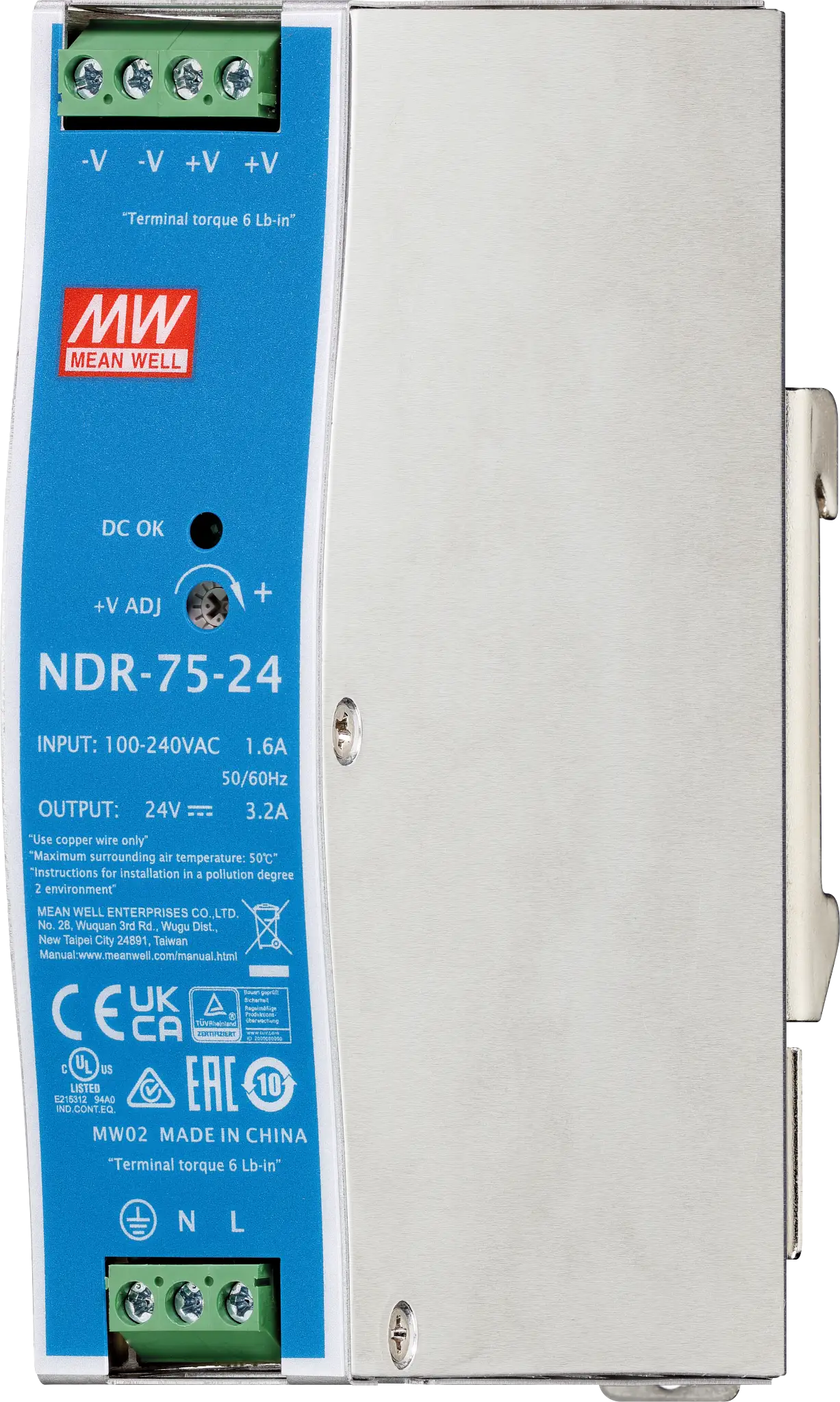

drylin® E switched-mode power supply 75W/24V/3.2A

1 from 2

Nominal power: 75W
Input voltage: 90-264VAC
Output voltage: 24V
Output current: 3.2A

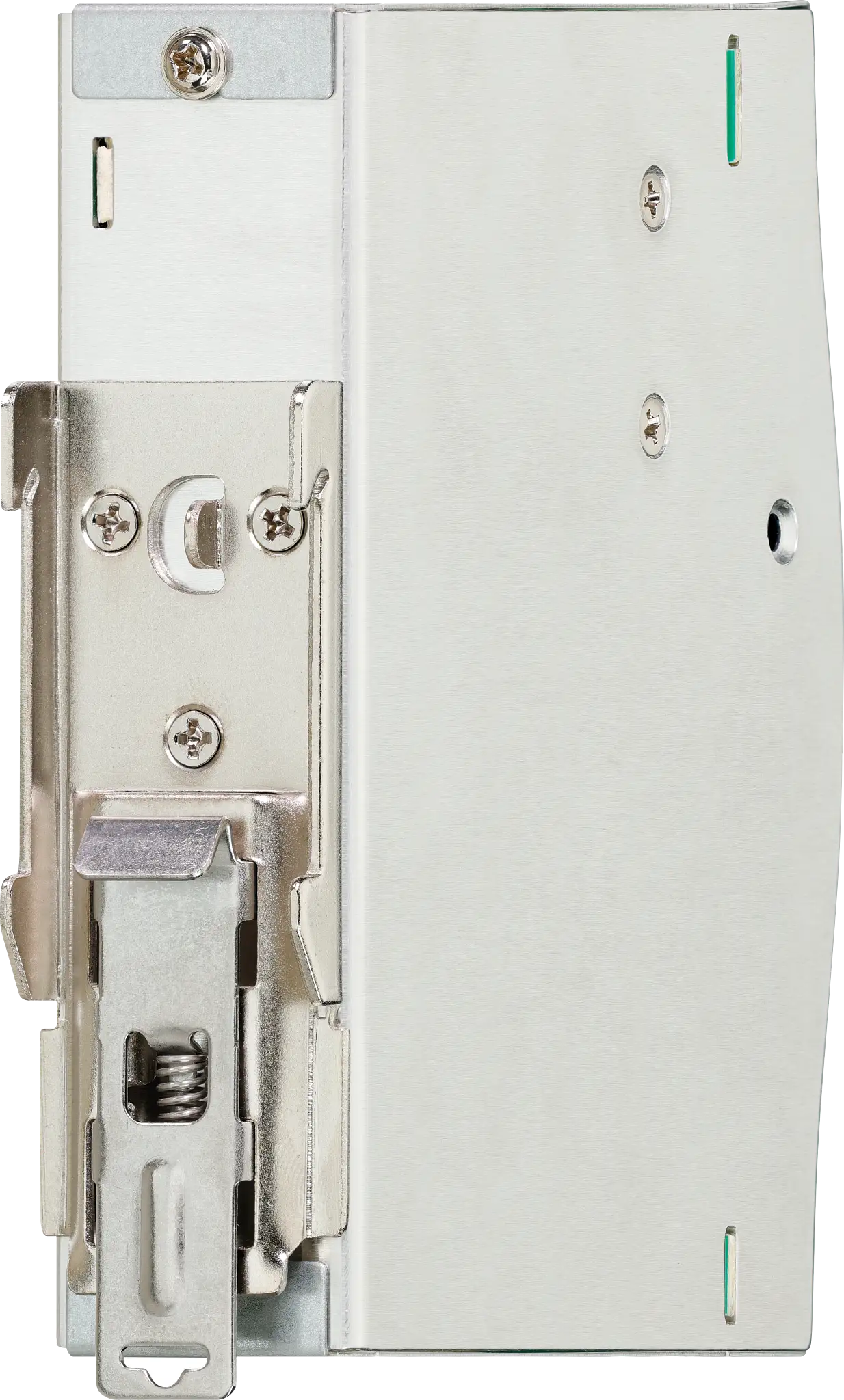

Installation: DIN Rail TS-35
Protective functions: Overload, overvoltage, overtemperature

Part No.

DLE-PS-NDR-75-24-3.2

The drylin® E switched-mode power supplies for automation are suitable for all dryve motor control systems. They supply output currents to operate the entire igus® motor series. The 24V output voltage is typically used to supply stepper and DC motors, optionally also EC/BLDC motors. Of course, the complete automation machine including the main control system such as PLC (programmable logic controller) or IPC (industrial PC) can also be supplied. The 48V top-hat (DIN) rail power supply units are recommended for higher speeds with stepper or EC/BLDC motors. The power supply units are mounted in the control cabinet on a DIN rail (TS-35). Protective functions such as overload, overvoltage and overtemperature have been integrated to ensure safe operation.
