Shopw Intercontec series B / 923

Categories
Filter
Core Requirements
Fitting

Number of products: 8

Standard connector series B, M23 power connector, incl. contacts

  • Material: Zinc die-casting/brass, nickel-plated
  • Pollution degree: 3
  • Protection class: IP 66/67 [plugged]
  • Over-voltage category: III
  • Temperature range: -20 °C to +130 °C
  • Union nut/screw: Brass, nickel-plated
  • Clamping ring material: Brass, nickel-plated
  • Contacts: Brass, gold-plated
  • Seal: FPM/HNBR
  • Insulation body: PA 6.6/PBT, UL 94/V0
  • Contact type: HC crimp bush
from 40.79 EUR/Pc.
3 different sizes available.
Ready for shipping:
3 usually shipped within 2 working days
To the online shop

Standard connector, series B, M23 standard feed-through with coupling nut, incl. contacts

  • Material: Zinc die-casting/brass, nickel-plated
  • Pollution degree: 3
  • Protection class: IP 66/67 [plugged]
  • Over-voltage category: III
  • Temperature range: -20 °C to +130 °C
  • Union nut/screw: Brass, nickel-plated
  • Clamping ring material: Brass, nickel-plated
  • Contacts: Brass, gold-plated
  • Seal: FPM/HNBR
  • Insulation body: PA 6.6/PBT, UL 94/V0
  • Contact type: HC crimp bush
from 59.68 EUR/Pc.
3 different sizes available.
Ready for shipping:
3 usually shipped in 8 working days subject to stock
To the online shop

Speedtec connector series B, M23 power connector, incl. contacts

  • Material: Zinc die-casting/brass, nickel-plated
  • Pollution degree: 3
  • Protection class: IP 66/67 [plugged]
  • Over-voltage category: III
  • Temperature range: -20 °C to +130 °C
  • Union nut/screw: Brass, nickel-plated
  • Clamping ring material: Brass, nickel-plated
  • Contacts: Brass, gold-plated
  • Seal: FPM/HNBR
  • Insulation body: PA 6.6/PBT, UL 94/V0
  • Contact type: HC crimp bush
  • SpeedTec
from 40.79 EUR/Pc.
3 different sizes available.
Ready for shipping:
2 usually shipped within 2 working days
1 usually shipped in 8 working days subject to stock
To the online shop

Speedtec connector, series B, M23 standard feed-through with coupling nut, incl. contacts

  • Material: Zinc die-casting/brass, nickel-plated
  • Pollution degree: 3
  • Protection class: IP 66/67 [plugged]
  • Over-voltage category: III
  • Temperature range: -20 °C to +130 °C
  • Union nut/screw: Brass, nickel-plated
  • Clamping ring material: Brass, nickel-plated
  • Contacts: Brass, gold-plated
  • Seal: FPM/HNBR
  • Insulation body: PA 6.6/PBT, UL 94/V0
  • Contact type: HC crimp bush
  • SpeedTec
from 59.68 EUR/Pc.
3 different sizes available.
Ready for shipping:
1 usually shipped within 2 working days
2 usually shipped in 8 working days subject to stock
To the online shop

Standard connector, series B, M23 power coupling, incl. contacts

  • Material: Zinc die-casting/brass, nickel-plated
  • Pollution degree: 3
  • Protection class: IP 66/67 [plugged]
  • Over-voltage category: III
  • Temperature range: -20 °C to +130 °C
  • Union nut/screw: Brass, nickel-plated
  • Clamping ring material: Brass, nickel-plated
  • Contacts: Brass, gold-plated
  • Seal: FPM/HNBR
  • Insulation body: PA 6.6/PBT, UL 94/V0
  • Contact type: Crimp pin
from 39.84 EUR/Pc.
3 different sizes available.
Ready for shipping:
3 usually shipped within 2 working days
To the online shop

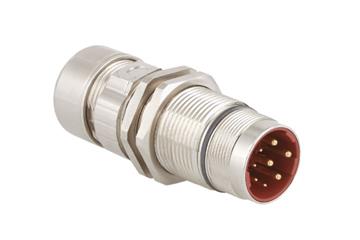

Standard connector, series B, M23 coupling with central attachment, incl. contacts

  • Material: Zinc die-casting/brass, nickel-plated
  • Pollution degree: 3
  • Protection class: IP 66/67 [plugged]
  • Over-voltage category: III
  • Temperature range: -20 °C to +130 °C
  • Union nut/screw: Brass, nickel-plated
  • Clamping ring material: Brass, nickel-plated
  • Contacts: Brass, gold-plated
  • Seal: FPM/HNBR
  • Insulation body: PA 6.6/PBT, UL 94/V0
  • Contact type: Crimp pin
from 49.30 EUR/Pc.
3 different sizes available.
Ready for shipping:
1 usually shipped within 2 working days
2 usually shipped in 8 working days subject to stock
To the online shop

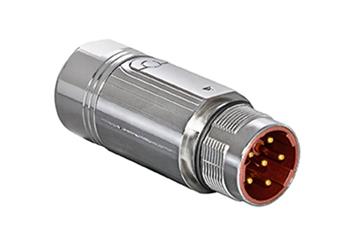

Speedtec connector, series B, M23 power coupling, incl. contacts

  • Material: Zinc die-casting/brass, nickel-plated
  • Pollution degree: 3
  • Protection class: IP 66/67 [plugged]
  • Over-voltage category: III
  • Temperature range: -20 °C to +130 °C
  • Union nut/screw: Brass, nickel-plated
  • Clamping ring material: Brass, nickel-plated
  • Contacts: Brass, gold-plated
  • Seal: FPM/HNBR
  • Insulation body: PA 6.6/PBT, UL 94/V0
  • Contact type: Crimp pin
  • SpeedTec
from 39.84 EUR/Pc.
3 different sizes available.
Ready for shipping:
2 usually shipped within 2 working days
1 usually shipped in 8 working days subject to stock
To the online shop

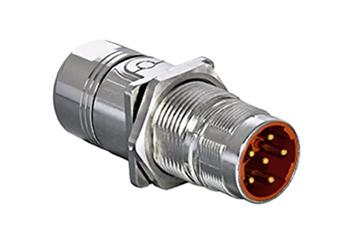

Speedtec connector, series B, M23 coupling with central attachment, incl. contacts

  • Material: Zinc die-casting/brass, nickel-plated
  • Pollution degree: 3
  • Protection class: IP 66/67 [plugged]
  • Over-voltage category: III
  • Temperature range: -20 °C to +130 °C
  • Union nut/screw: Brass, nickel-plated
  • Clamping ring material: Brass, nickel-plated
  • Contacts: Brass, gold-plated
  • Seal: FPM/HNBR
  • Insulation body: PA 6.6/PBT, UL 94/V0
  • Contact type: Crimp pin
  • SpeedTec
from 49.30 EUR/Pc.
3 different sizes available.
Ready for shipping:
3 usually shipped in 8 working days subject to stock
To the online shop

Series B/ 923 Intercontec power connector.

This is a Intercontec Power connector. Size 1 (6.8 and 9 pole) Metal construction, EMC shielding. The temperature range is from -20°C  to +130°C.
