Cable guidance on the FANUC CRX

igus is FANUC CRX Equipment Partner

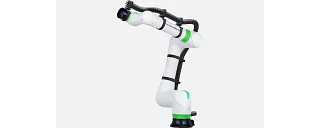

Fanuc CRX

Suitable for CRX-10iA + CRX-10iA/L
Since May 2021, igus® has been a proud equipment partner of FANUC for the CRX-10iA and CRX-10iA/L collaborative robots.
To ensure clean and, above all, safe guidance of cable and hose on the CRX robot, we offer the right fastening options with the igus® cobot clamps as well as extra protection with the robust triflex® R energy chain.
You can choose between the open TRE chain, the closed TRC chain or the light TRL chain. You can choose between sizes 30 and 40 for the 3 versions.

Contact an expert

Fastening points axis 1 & 6

Connection to axis 6

Fanuc CRX connection to axis 6

To mount the triflex® R chain at the optimum distance from the axis 6, we also offer the matching tension clamp.
This is fixed to the robot with two screws and the clamp also has 2 holes at the other end to fit a mounting bracket(TL.40.01.Z2).

Connection axis 1

Cobot attachment CRX axis 1

Each cobot clamp comes with a 1 metre Velcro strap, which enables it to be mounted on axis 1 of the CRX.
In this case, the mounting bracket is mounted on the clamp rotated by 90°, thereby ensuring a reliable connection between the cobot, clamp, Velcro strap, mounting bracket and triflex® chain.
The Velcro tape also has a non-slip, silicone-free coating on the inside, which further increases the grip on the robot.

Installing a triflex R energy supply system on the FANUC CRX

Installing the energy supply on the CRX robot is quick and easy and requires only a few tools (scissors, hexagon socket, screwdriver).

The following parts were used in the video:

Cobot clamp range

Hook and loop clamp

Cobot clamp standard
  • 1x plastic holder
  • 1m Velcro tape
  • most favourable clamp in the range
  • silicone-free
  • maximum freedom for cable routing
Visit the shop

Clamp without strain relief

Cobot clamp with mounting bracket, no strain relief
  • 1x plastic holder
  • 1m Velcro tape
  • 1x light mounting bracket size 30 or 40
  • suitable for TRE, TRC & TRL in size 30 or 40
  • silicone-free
Visit the shop

Clamp with strain relief

Cobot clamp with MB with SR
  • 1x plastic holder
  • 1m Velcro tape
  • 1x light mounting bracket size 30 or 40
  • In size 40, with long and short strain relief teeth
  • Suitable for TRE, TRC & TRL in size 30 or 40
Visit the shop

Clamp protector

Cobot clamp protector
  • 1x plastic holder
  • 1m Velcro tape
  • 1x round protector size 40
  • Protector can carry TRE, TRC & TRL in size 40
  • silicone free
Visit the shop

PMA hose clamp

Cobot clamps PMA
  • 1x plastic holder
  • 1m Velcro tape
  • PMA clip
  • available in 5 sizes for corrugated hoses with diameter: Ø17, Ø23, Ø29 , Ø36 & Ø48 mm
Visit the shop

e-chain that goes with the cobot clamp

triflex R chain
triflex R chain

Size index 30 or 40

Closed type TRC with 100 % optical and physical protection for cable and hose
⇒ directly to the TRC shop

Simply insert the cable and hoses into the e-chain® from the outside
⇒ directly to the TRE Shop

Very open but also very light and cable and hose can be inserted from the outside
⇒ directly to the TRL Shop

CRX in the configurator

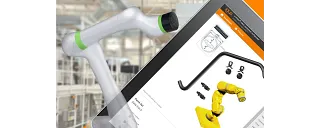

Fanuc CRX in the configurator

We have put together ready-made packages for the CRX-10iA and CRX-10iA/L and packed them into the online configurator.
All you have to do in the configurator is select

  • the clamp type
  • the chain size (30 or 40)
  • the chain version (open, closed or light
to the configurator

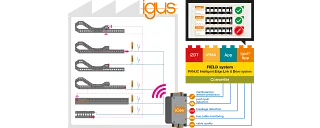

Intelligent plant monitoring with the Fanuc FIELD system and smart plastics

To evaluate data from machines and systems, FANUC, an international robot manufacturer, offers its "FIELD system" open industrial IoT platform. The system uses local network topology to connect production machines from all manufacturers, allowing comprehensive data analysis for the entire process chain. This infrastructure uses apps from FANUC and third-party suppliers. The "smart plastics - i.Cee" app enables maintenance personnel to monitor the condition of their smart plastics components, such as energy chains and cables, and plan maintenance work in advance in the FIELD system.

More about this in our blog
