Plastic rod and plates made from iglidur® materials

Plastic rods (also known as bar stock) and plastic plates make it possible to cost-effectively produce components and profiles for motion. Igus® plastic rods are suited for individual product series or prototypes. Plastic plates, hollow and round rods are made of a wide range of different iglidur® high-performance polymers.

The properties of each individual material make it a specialist for certain applications, such as an especially low coefficient of friction or high temperatures, food compliant and FDA approved, chemically resistant and high load. With the expert system for plastic rod the service life for plain bearing applications can be calculated online. iglidur® plastic rods and plates are used with great success in mechanical engineering, food and packaging industry as well as in medical laboratories and cleanrooms, to name only a few applications

Visit the shop

Configurators

handymanConfigure your custom partlock_clockCalculate the service life of your partbuildTo all custom parts configurators

Plastic rod and plate material options

Plastic rod - iglidur®

plastic rod round bars
  • Outer diameter 10 to 100mm
  • Flexible lengths from 100 to 1,000mm
  • Excellent coefficients of wear and friction
Visit the shop

Plastic hollow rod - iglidur®

Plastic hollow rod
  • Outer diameter 110 to 150mm
  • Inner diameter 70 to 100mm
  • 100 to 1000mm lengths in various materials
Visit the shop

Plastic plates - iglidur®

Plastic plate
  • Plate thickness 2 to 40mm
  • Operation temperatures -100°C to 250°C
  • FDA compliance where necessary
Visit the shop

Plastic extrusions

plastic rod extrusions
  • For special dimensions in small quantities
  • Profiles in iglidur® high-performance polymers
  • Custom extrusions designed from a CAD file.
Visit the shop

Online CNC service

plastic rod custom parts
  • 3 steps to individual turned and milled parts
  • Configure your requirements and find out the price instantly
Configure your part

Tribo-tape adhesive tape

tribo tape
Find out more

Material product finder

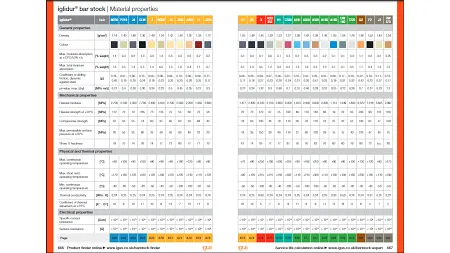

bar stock image

Selected plastic rod application examples

Machine for the manufacture of technical brushes

Customised solution

This machine for the production of technical brushes contains parts made of iglidur® plastic rod that were designed and milled by the customer themselves.

Plastic rod replacement of wearing part in assembly line

Made of plastic rod: components made of iglidur® reduce maintenance costs

In a tyre soaping station, metal bearings were used up to now, which regularly led to a breakdown of the system. Now, these bearings have been replaced with plastic bearings made of igus® plastic rods. This saves costs of several thousand Euro per year.

High number of cycles with plastic rods

High number of cycles

Plastic plate plastic rod as bearings with a large contact surface withstand even a very high number of cycles in this application.

Melting probe with bearing element made of iglidur® plastic rod

Individual iglidur® component for melting probe

The "IceMole" is a melting probe, with which the polar regions, glaciers and as a long-term objective extraterrestrial regions are to be explored. For storing the ice screw, a component was needed that is water- and dirt-resistant and  thermally insulated. Therefore, a bearing is used that was made of iglidur® A180 plastic rod.

Microscope arm with bearings made of iglidur® plastic rod

Special bearings for highest precision in ophthalmology
iglidur® plastic rod is used to manufacture a microscope arm for eye examinations. The reason: it can be machined to produce customised plain bearings down to sizes measured in μm to ensure the necessary precision for examinations.

Finger of Vincent hand prosthesis with customised bearings made of iglidur® plastic rod

Durable and wear-resistant plain bearings for finger prosthesis
This prosthesis is an electrically powered finger. The joint at the base of the finger is moved directly via a gear motor, which carries along the middle joint via a flexible connection. All axes involved in this movement are mounted through plastic sockets made of the material iglidur® J. Altogether, eight bearings are integrated in one finger.

The bar stock you can purchase from us is produced according to DIN EN 15860. The regulation DIN EN 15860 defines the requirements and testing procedures for the most important characteristics (e.g. thickness, width and length of plates, round bar diameter and length, permitted deflections of the bar stock) of bar stock made of thermoplastic polymers for machining.

Frequently asked questions

Round bar is used to manufacture turned custom parts such as bearings. bushings, circlips and washers. If the custom parts doesn't conform to the shape of the round bar, we have plate material to mill parts from instead.

We have a range of food-safe materials which have various properties such as chemical resistant, high temperature and blue colouring. These food-safe materials are available as round bars and plates.

igus materials are unique in the fact that each material is combined with base polymers, fibres and self-lubricating elements to create a blended material, depending on the makeup. Because we have a range of materials, some are more like nylons and PTFE than others so it is difficult to do a direct comparison.

This depends on the application. We have a varied range of materials for certain specifications such as high chemical resistant, high loads, low water absorption food approved and ESD compliant.
