Linear axes with toothed belt drive

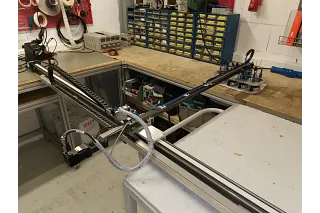

The drylin® linear axes with toothed belt drive are suitable for many positioning and adjustment tasks. The lubrication-free W profile guide acts as a linear guide and a toothed belt acts as a drive. The stroke is individually selectable. Thanks to the lightweight design using polymer and aluminium, igus® linear axes with toothed belt drive have a low mass inertia, making them highly efficient.
Both in confined installation spaces and in applications requiring high torque support, the series of linear units with toothed belt drive offer the right solution; both as a single system and in gantry designs. All our toothed belt axes can be ordered with ready-to-connect configurations with stepper and DC motors.
Toothed belt drive options
Tools for linear system configurations
In just a few steps to the harnessed drive system

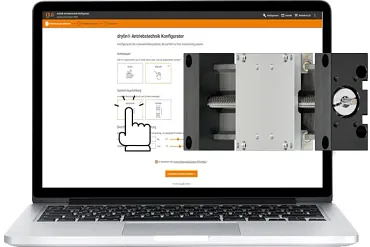

The drive technology online configurator gives you the right drive technology system after you enter your requirements. You also have the option of requesting or ordering motors and other accessories, such as the motor control system.
- Fast and easy configuration
- Optional accessories
- Detailed parts list
- Fast delivery
Easily configure an SHT lead screw linear system online
The SHT Designer enables you to configure a custom SHT lead screw linear system in just a few steps. You can also configure a custom drive pin (optional). A 3D model of the linear system is created automatically.
- The linear system can be exported in 2D & 3D
- 2D dimensional drawing of the assembly (PDF)
- Complete parts list available as PDF download
- And many more
Find out more about linear modules with toothed belt drive
