Tribo-optimized polymers for plastic machines
Installation-friendly igus® systems for movements in plastic machines
Save costs with the latest technology with maintenance-free energy supply systems and plain bearings
High additional loads, precision and high temperatures are catchwords in the energy supply systems of machines for the processing of plastics. Plastic energy chains guide and protect the cables and hoses in blown film lines, injection molding machines or extruders. Plastic e-chains® make use of their advantages even in difficult fillings:
High additional loads possible
Application in high temperatures
Circular movements
Pivoting motions
Space saving
Use in dust, powder deposits and moisture
Customer testimonials
"We have essentially less work with the chain" (Mr. Ortmann, Kuhne Anlagenbau GmbH)
The company Kuhne GmbH designs and manufactures machine components in accurate detail in its own factory. In the blown film line, readychain® systems from igus® provide for a precise energy supply in a turning application (Ø 4.50 m).
energy chains in operation at the company Kuhne: Interview with Mr. Ortmann about the application of igus® products in a blown film line. (German)
Current News 2015 for plastic machines
… also round shaft clamping
New and unique linear housing with integrated manual clamp is available for drylin® R round shaft guides.
… longer service life also in INCH
With up to 8 times longer service life on steel shaftsfilms, the liners made of the dry-tech® material iglidur®E7 are remarkable in practical use.
… cornering technology
For the product series drylin® W and T igus® providesrail profiles according to customer requirements in a curved shape
36-month guarantee … for chainflex®
With our unique igus® guarantee for ALL chainflex® cables we are providing predictable security for 36 full months
... chainflex® M ... CAN Bus + Profinet cables...
For flexing applications Without influence of oil Preferably indoor applications
More products for uses in plastic machines
chainflex cables - product overview
Inform, select and order online.
readychains® - Ready-Made e-chain systems®
Ready assembled energy chain systems with all components ... ready to install!

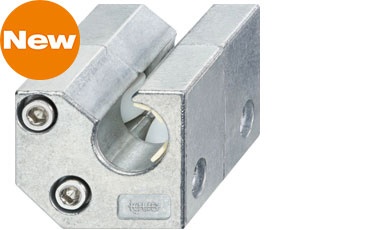

drylin® W hybrid bearing | roller bearing
drylin® W hybrid bearings | roller bearing in 2 new sizes ensure low driving forces - mainly required for manual adjustments - by a combination of gliding and rolling.
iglidur® product overview
iglidur: Large range of Bushing & Accessories from igus®
robolink® Product Overview
Components kit to make movable robotic systems
Other information
Application examples

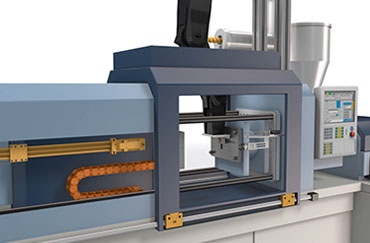

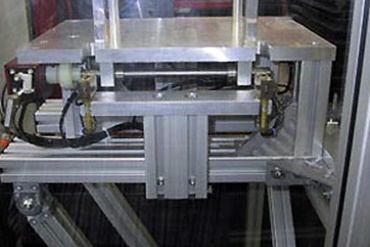

Injection-molding machine
Pivot arm in injection-molding machines mounted with plastic plain bearings: With the simple plug-in installation and the adjustable collar, it was possible to abandon the highly complex bonding mechanism.

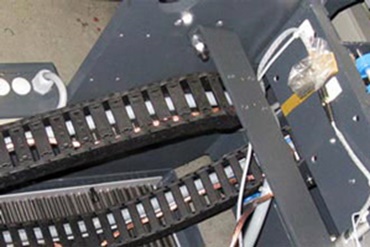

Injection moulding tool
Thee-chain® was installed on an injection moulding tool so thatno additional space is necessary in horizontal direction forthe unreeling movement.

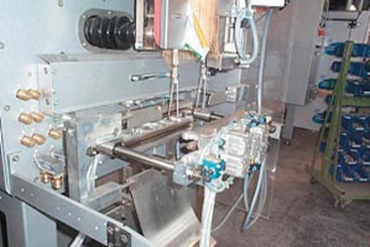

Bag forming, filling and sealing machine
The crimpers in hose packaging machines often reach temperatures of 160°C and above in continuous operation.

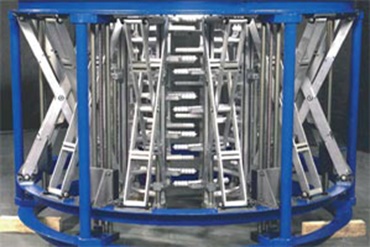

Calibration cage in a blown film line
In conventional solutions, while cleaning, the lubricant on the bearings is washed away or the bearings are even rinsed to get rid of the dirt particles.

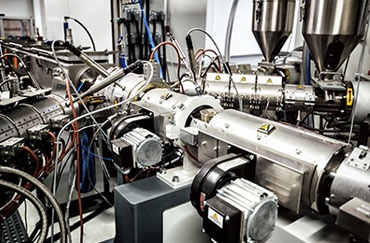

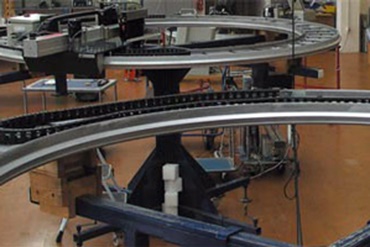

Measuring system for extruder
Measuring and regulating system in the area of blown film extrusion

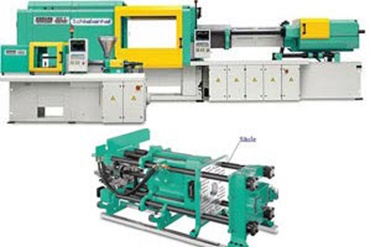

Pillar cleaning facility
The bearings have been installed about a year ago and since then operate free of troubles in the manufacturing.

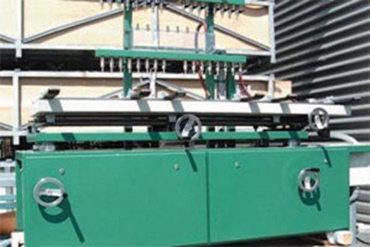

X-Y-Z table adjustment
drylin® SHT spindle lift table for a precise positioning of the tools in X-Y-Z direction.
Bag forming, filling and sealing machine
Application of drylin® high-temperature bearings in bag forming, filling and sealing machine for the sealing bar bearing
Bag forming, filling and sealing machine
Maintenance-free plastic bearing defy all outer influences and provides for the required service life.
Blow Molding Machines
Products for use in blow molding machines in the packaging industry

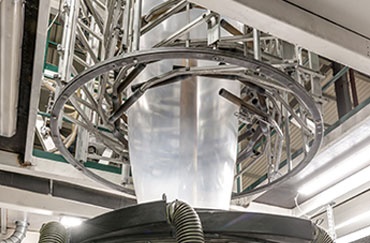

Blown film line
An e-chain system® in a blown film plant of the company Kuhne Anlagenbau GmbH
Blown film line
Blown film plant for the production of packaging, shrink wrap and lidding films
Blow molding system
The e-chain® series 800 at a Textron blow molding system H12 (production of tank filler necks)
Blow molding system
The e-chain® in the blow molding system of the company Mauser, production of 1000 l - containers
Removal system
Short and fast lifting movements in a removal system. Accelerations of 8XG are no problem.
