Energy chains for high loads

The E4.1 and E4.1L families are to high loads what the E2/000 and E2.1 are to the medium load segment. The most versatile e-chain® modular kit on the market. Can be expanded virtually at will using accessories. Enormous range of of dimensions and unique technical specifications for all types of machines and branches of industry. Can be opened and filled extremely quickly, provides high torsional stability and strength thanks to "undercut design" and "double stop-dog system". Quiet running thanks to integrated "brake" in the stop-dog system.

Products

E4.1L

E4.1l

Current generation


Reduce cost, time and weight

  • Inner height: 40 to 300mm
  • Crossbar openable from both sides along inner and outer radius
  • Integrated "brake" for low-noise running
  • Undercut design for the best possible lateral stability
  • Can be closely adapted to the application
  • Best possible value for money
  • 30% less weight and 80% faster installation than comparable series
  • Double stop-dog system and large pin/bore connection for high level of force absorption

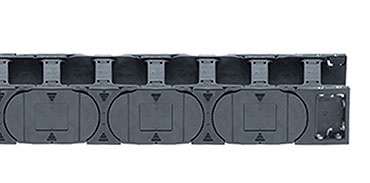

E4.1

E4.1 series

Predecessor model of the E4.1L


A series for virtually every application

  • Inner height: 30 to 800mm
  • Crossbars removable along the inner and outer radius
  • For especially demanding applications
  • Undercut design for the best possible lateral stability
  • Double stop-dog system and large pin/bore connection for high level of force absorption
  • High push force on long travels and for large unsupported lengths
  • Noise-reducing "brakes" and optional noise dampers
  • Integrated "brake" for low-noise running

E4/light

E4 light
Large inner heights combined with low own weight

  • Inner height: 50 to 600mm
  • Crossbars removable along the inner and outer radius
  • Reduced thickness of the side sections and thinner crossbars

Reliable protection against dirt and swarf

e-tubes
Swarf-repellent chains

Many series are also available as tube or half-tube options!

This will take you to our large selection of swarf-resistant but nevertheless openable e-tubes.
