igus® pre-load prism slides/dovetail guides

lubrication-free drylin® N pre-load prism slides are guaranteed to deliver a firm grip. The pre-load for all linear carriages can be freely selected from four classes. This allows precisely controlled adjustment without any stick-slip effect. Pre-load class selection allows defined selection of displacement forces, which remain constant throughout the service life, and enables the carriage to hold the load in place.

Easy positioning of carriage
Guaranteed drive force and holding force

Extremely lightweight low-profile
Coated rails (silver and black) with or without fixing holes make them ideal as visible parts

drylin® innovations 2021 - Get to know the new pre-load prism slide now

Tech up, cost down: we will always give you at least one of the two. That is our profession and what we have offered for many years. The challenges of the "upside-down" year of 2021 have spurred us on to improve our efforts. Experience the drylin® innovations of 2021.

To the new pre-load prism slide

New products in 2021

Pre-load prism slide – dovetail design

Guide rails

Corrosion-resistant anodised aluminium
With standard fixing holes or without holes
Prism geometry for great holding forces and defined displacement forces

Buy guide rails here

drylin® N guide carriage, individual pre-load

Individual pre-load carriage

Standard prism carriages with individual pre-load
For variable distances
4 pre-load classes
For bolted connections from below or threaded pins

Buy carriages with individual pre-load

drylin® N complete solution for linear applications with compact installation space

Dual carriage pre-load

Long prism carriage with dual pre-load
More stable guide length
4 pre-load classes
For bolted connections from below or threaded pins

Buy carriages with dual pre-load

Pre-load prism slide measuring system

econ measuring system based on drylin® pre-load prism slide

Carriages with individually adjustable pre-load in four different strengths
Including scaling on the rail
Cost-effective, durable, practical
Guaranteed holding forces from 1.3N to 11.7N
A stop-motion spring pre-load makes the
measuring system suitable for vertical installation without any further clamping

drylin® stop motion measuring system

Pre-load prism slide displacement forces

The benefits at a glance

Various widths
100% maintenance-free and lubrication-free
Corrosion-resistant and hygienic
Resistant to dirt, dust and humidity
Quiet operation
Stop motion available for endlessly variable adjustable guidance

To all drylin® N products

Do you know our roller guides?

Hybrid roller bearings with ball bearings for smooth lateral adjustments
Up to 4 times quieter than metallic bearings due to igus high-performance polymers
Low installation height of 30mm on attractive rail profile WSR-10-120
Optimised roller alignment for maximum force absorption

A free sample box with a pre-load prism slide

The box contains low-profile guide rails with different coatings, maintenance-free single and double carriages of different sizes, and a clearance-free pre-load prism slide with two pre-loaded carriages. You also receive information and data about our drylin® N products. No strings attached. Just take it home.

drylin® laptop configurator

Are you familiar with our linear rail configurator?

You can use the drylin® linear guides expert to quickly and easily configure an individual linear guide for your application in just five steps. For pre-load prism slides, just choose drylin® N.

Application examples

drylin® N low-profile guide systems are deployed particularly in places where the installation spaces are small while demands are high. The compact but tough design meets the highest demands with regard to precision and flexibility. The various widths for the guides and the wide range of guide carriages provide a great variety of application options.

drylin® N in a 3D printer

Lightweight, low-profile and lubrication-free

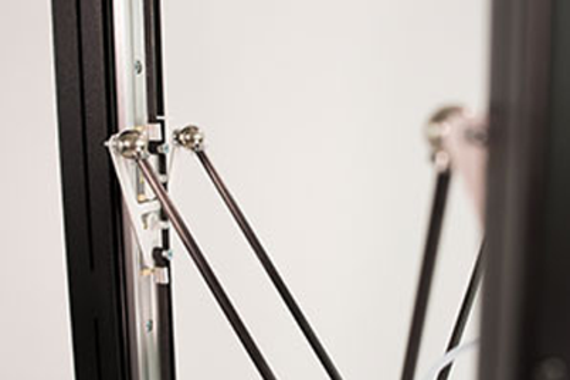

The LOV3 delta 3D printer from PEL3O has been designed for both commercial and private use. The goal here was to address the creative mind. The 3D printer from PEL3O operates quickly and reliably with drylin® N, without the need for maintenance.

drylin® N for a 3D camera

Simple and precise

Two conventional cameras are set up at an angle on a low-profile guide system to create a three-dimensional image. This trick renders an expensive 3D camera unnecessary. For this to work properly, the slight difference in the alignment of the cameras must remain identical at all times. This is made possible with a drylin® N low-profile guide system.

drylin® N low-profile guide system for 3D cameras

drylin® N on packaging machine for bottles

drylin® N on packaging machine for bottles

No lubrication means no soiling – completely hygienic!

In this packaging machine, a gripper lifts and packages bottles. The fingers of the gripper are moved by means of a low-profile guide system. No soiling by lubricants such as oils or greases occur at this critical point in the machine. For this reason, there was only one solution – drylin® N.

drylin® N in testing and sorting plant

drylin® N in testing and sorting plant

Highest demands on hygiene in food technology

By means of a vacuum gripper, test parts are removed, measured and taken to various magazines. The removal unit is moved along the X-Y axis using the space-saving and cost-saving drylin® N low-profile guide system. The robust TK-04 guide system takes on vertical guidance.
