Small linear systems

Miniature linear axis for the smallest installation spaces

drylin® SLN linear axes offer the solution for tight installation spaces. The small axis measures 28x22mm and is configurable with a stroke length of up to 250mm.

Thanks to the lubrication-free polymer sliders, it operates extremely quietly and is also very lightweight. The micrometre table of installation size 27 forms the basis. The lead screw axis is available with ball bearings in the shaft end supports.

The drylin® SLN micrometre table can be adjusted both manually via hand wheel and motorised combined with drylin® E stepper and DC motors.

buildConfigure your linear systemVisit the shopNeed support?

Linear systems for small installation spaces

SLN - Miniature linear axis

miniature linear axis
  • Single parts made from aluminium and polymer
  • Completely lubrication-free
  • Very compact type
  • 3 carriage types
  • Axis mounted on plain bearings or ball bearings
Visit the shop

SLNV - Miniature module with motor

  • Electric axis based on the pre-load prism slide
  • Very precise
  • Efficient stroke length (up to 250mm)
  • Compact design for small installation spaces
  • Can be extended with initiator kit
Request a quote

Back to Drive overview

overview

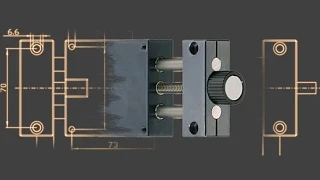

  • Not sure which drylin® drive system is best for you?
  • Click here to go to a full overview of all of the drylin® drive ranges available and for the drylin® drive configurator.
To the overview

Linear system accessories - control elements

Accessories for drylin linear modules and linear axes
  • Accessories for manual positioning and format adjustment
  • Assembly and fastening options
  • Stepper and DC motors for electrical drive
Go to accessories
