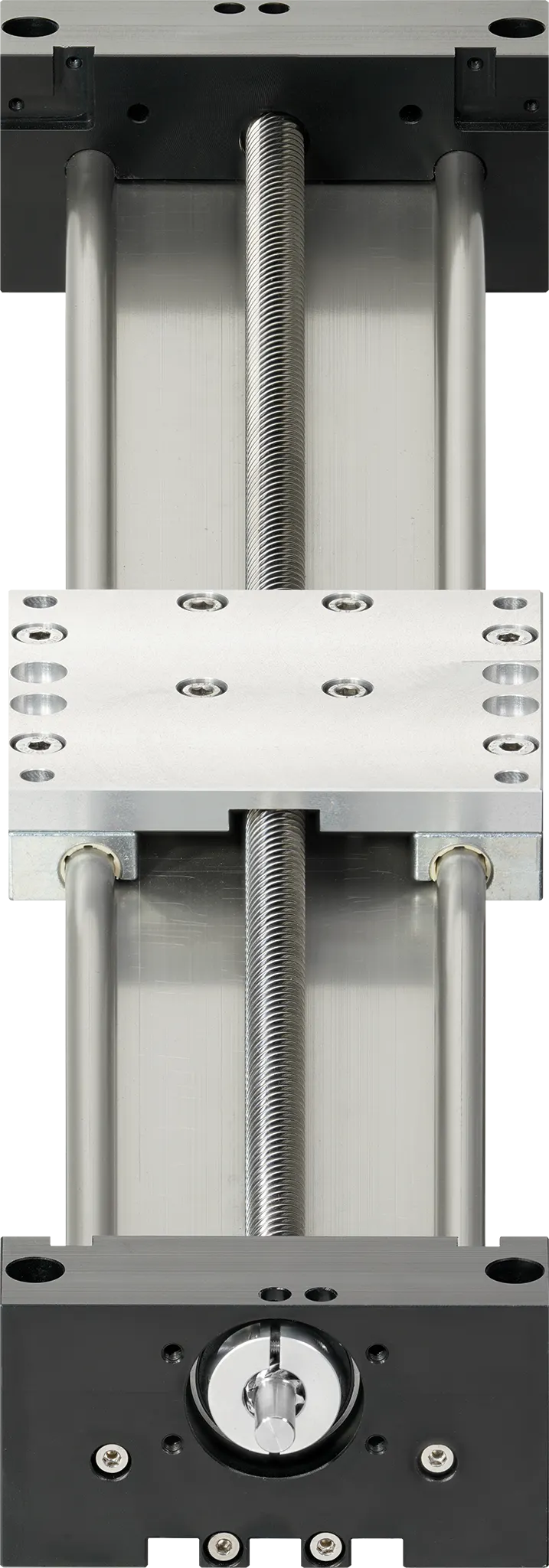

drylin® SAW linear guides with lead screw drive

Dynamic due to lead screw drive with ball-bearing

The high profile based on the drylin® W series ensures the torsionally rigid basis of the linear modules of the SAW linear units. Due to the high type and the ball-bearing mounted lead screw as standard, the SAW linear guides are perfect for the direct connection of stepper motors or DC motors. With the freedom to easily add proximity switches and matching adapter plates enables the construction of multi-axis systems, and these can be installed with optional profile grooves.

buildConfigure your linear systemShop linear systemsassignment_returnedNeed support? Contact us

SAW linear system options

drylin SAW linear guide with lead screw drive

SAW - Dynamics in high-profile type

  • High, robust type in 4 installation sizes
  • For manual positioning or motorised operations
  • High stability
  • Cost-effective
Visit the shop

SAWC - direct drive

  • Short type due to direct drive
  • Optimised ratio of useful length to total length
  • Improved operating characteristics & space-saving
Visit the shop

SAWP - Extremely light linear module

  • Dynamic linear unit
  • Lightweight carbon profile
  • Robust construction
  • Stroke lengths up to 300mm
Visit the shop

Configure individual linear guide with lead screw drive

  • Customise your  or SAW lead screw linear system in just a few steps
  • Optional configuration of an individual drive pin
  • Automatic generation of a 3D model of the linear system
  • Export of the linear system in many different 2D and 3D formats
  • 2D dimensional drawing of the module as a PDF
  • Download parts list as PDF file
  • Add to shopping cart and submit order or request a quotation online
Configure your drive system

Application examples of drive technology

Drive technology application example Art Robotics

Special measurement setup with lead screw axes

Research and development in the field of sustainability requires innovative, cost-effective, cleanroom-compatible solutions. In combination with the motor and control system, our lubrication-free lead screw axes ensure a cost-effective turnkey solution.

  • Go to application
    • Drive technology application example

    3D printer for concrete l Lubrication-free solution for dusty environment

    The use of cement creates a high level of dust load in the 3D concrete printer, which the products have to withstand. Furthermore, the longest possible service life and fast maintenance are required. Our bearing solutions and lubrication-free linear drives ensure a long service life despite dirt and contamination.

  • Go to application
    • Drive technology in an order picking unit

    Electric drive technology in an automated positioning system

    Unlike traditional recirculating ball bearing systems, drylin linear plain bearings operate on sliding elements. This application overview shows you the most diverse areas of application for maintenance-free linear drives from the drylin product range.

  • Go to application
    • AWB

    More application examples

    Here you will find many more application examples from our customers from all industries. Discover the applications in which the linear units from igus are already used.

  • To the application examples
