Clean ribbon cable e-skin® flat

Modular principle for ISO class 1 applications – flat cable guidance system with stranded structure
► Modular and compact design
► Replace cables quickly
► IPA classification: EN ISO Class 1 to DIN 14644-1 for e-skin® flat, Report IG2102-1212
► UL-certified complete system
► High reliability due to coordinated stranded structure CFCLEAN
► Available from stock

Would you like more information about e-skin® products? Our experts will be happy to get in touch with you.

Contact an expert

For cleanroom applications: IPA tested, ISO Class 1 certified, particle-free guaranteed

Variants and sizes of flat ribbon cable e-skin® flat

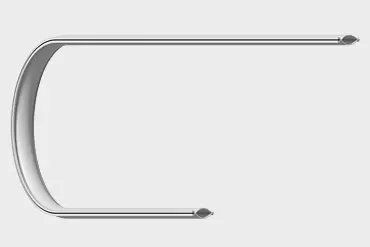

SKF12C.1.1.10

Inner height: 12mm
Outer height: 13mm
Number of chambers: 2 - 6
Closed version
For use with support chain

► For technical details

Configure e-skin® flat here

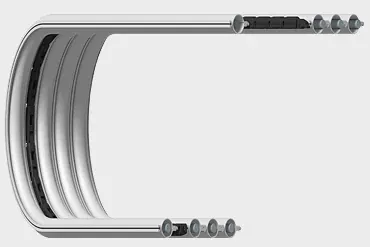

SKF12O.1.1.10

Inner height: 12mm
Outer height: 13mm
Number of chambers: 2 - 6
Openable
Without support chain

► For technical details

Configure e-skin flat here

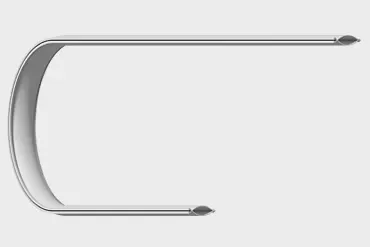

SKF15C.1.1.10

Inner height: 15mm
Outer height: 16mm
Number of chambers: 2 - 6
Closed version
No suitable support chain available

► For technical details

Configure e-skin flat here

SKF12C.UL.1.1.10

Design: enclosed
UL certified complete system
Inner height: 12mm
Number of chambers: 2 - 6
Cable ≤ ø: 2 - 6mm

Request more information

SKF12O.UL.1.1.10

Design: enclosed
UL certified complete system
Inner height: 12mm
Number of chambers: 2 - 6
Cable ≤ ø: 13mm

Request more information

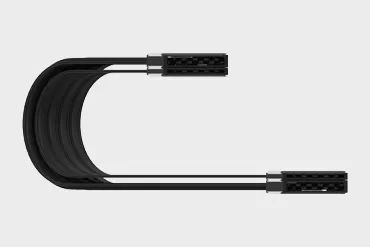

NEW: e-skin flat ESD

With conductive material
Modular design, single pods can be connected
No further shielding of ESD-sensitive parts necessary
Faster, easier replacement of the filling

Request more information

Benefits: Increase overall equipment effectiveness and achieve higher yields

Modular and compact structure
Change cables in minutes in case of failure, no fused cables. Easy visual inspection of the cables.

Resource-saving system
Individual modules can be connected to form wider systems. In the event of damage, only individual elements can be replaced.

Highest cleanroom classification
IPA classification: EN ISO Class 1 according to DIN 14644-1, Report IG2102-1212, UL-certified complete system and winner of the Reiner award 2021.

Tested service life
Over 81 million double strokes and with up to 4-year guarantee. Tested with the utmost care in our own cleanroom laboratory and by the Fraunhofer Institute.

High reliability
Thanks to the specially coordinated chainflex CFCLEAN stranded structure. No bending of the system due to stubborn jacketed cables and no reset forces.

Fast delivery
Delivery with no minimum order quantity without any minimum quantity surcharge. No gluing or fixed configuration, etc. Changes are possible at any time. Configure ribbon cable now.

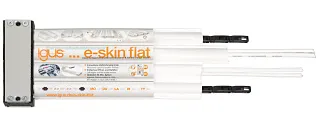

Order a free e-skin flat ribbon cable

Would you like to hold our clean e-skin flat ribbon cable in your hands before you issue an order?
Then please order a free sample from us.

Order a free sample now

Example applications

Automation technology

Weiss GmbH is specialised in the development and manufacture of components for automation technology and a leader in the field of rotary indexing tables and wanted to find a cable feed-through up to the middle of a tool that could hold two sensor cables and two hoses, each with a diameter of four millimetres. The solution: the clean e-skin flat ribbon cable from igus. Service life over 57 million double strokes.

Volume Pattern Generator (VPG) systems

The e-skin flat ribbon cable convinced Heidelberg Instruments and is used in Volume Pattern Generator systems. This compact system allows very small bend radii and is resistant to wear and abrasion during movement so that it can be used in cleanrooms - even in multiple layers, as tests by Fraunhofer IPA confirm.

Free white paper:

Energy supply systems for the cleanroom

In this white paper you will learn how the right energy supply in the cleanroom:

increases overall equipment effectiveness
generates higher production line yields
uses cleanroom energy supply more sustainably
and much more ...

Download and find out more

Frequently asked questions

Yes, our ribbon cable has been tested with the utmost care by the Fraunhofer Institute and has received the highest cleanroom classification: ISO class 1 according to DIN 14644-1

Very quiet 29dB(A)

According to the current test status, the e-skin flat ribbon cable has a service life of 81 million double strokes.

We are also in the highest cleanroom class for multi-layer systems, because a 3-layer system was also certified by the Fraunhofer Institute with ISO class 1 according to DIN 14644.

We currently recommend up to six layers on top of each other. However, the mounting bracket that holds the layers together should nevertheless not be higher than it is wide.

With our e-skin flat online configurator you can quickly put together your own ribbon cable with cables using drag & drop.
