Linear modules for small installation spaces

SAWC, Short design including lead screw motor

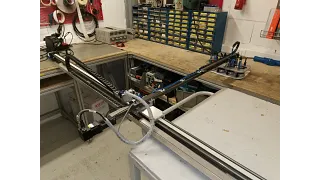

sawc application

Compact short type due to the use of drylin® E lead screw motors
Optimised ratio of useful length to total length (compared to the SAW series, up to 70mm)
Improved operating characteristics
Space-saving and lightweight
2 installation sizes

**Typical areas of application:**Medicine, packaging technology, laboratory technology

Would you like more information about drylin® SAW drive systems or do you need an individual consultation? Our experts will be happy to get in touch with you.

Contact an expert

SAWC series installation sizes

SAWC-0630

sawc-06

Maximum stroke length: 300mm
Carriage length: 50mm
Max. static load capacity:

Axial: 100N
Radial: 200N

SAWC-1040

SAWC-1040

Maximum stroke length: 500mm
Carriage length: 69mm
Max. static load capacity:

Axial: 500N
Radial: 2000N
