easytube single-tube drylin® linear unit

The single-tube linear axis with protected lead screw

Adjusting mechanism on a machine with an orange knob and metal bracket.

The tube system linear unit for light adjustment tasks is ideal for manual adjustments. The single-tube axes from the easytube range are available in three installation sizes. The outer anodised aluminium guide tube guides one or more guide carriages while protecting the lead screw and nut from external influences. The carriage, torque support, spherical thrust bearing of the lead screw and lead screw nut are all made from self-lubricating plain bearing high performance polymer.

This guarantees a low coefficient of friction and low wear. The easytube single-tube guide is ideal for format adjustments and applications where the drive elements must be protected against dust and metal chips.

Would you like more information about drylin® SET easytube or do you need an individual consultation? Our experts will be happy to get in touch with you.

Contact the expert
EasyTube with orange connector and central carriage on a shaft.

SET easytube single-tube linear unit

Shop now

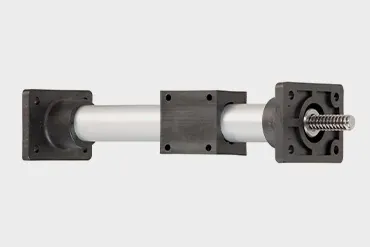

drylin SET-F linear guide with shaft and end supports.

SET easytube single-tube with flange

  • Double flange
  • Ideal for axial connection
  • Flange made of robust plastic
Shop now

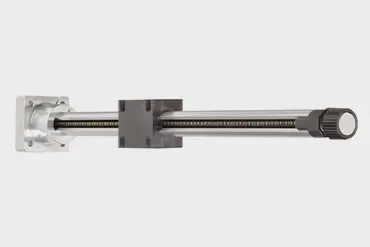

SETB easytube -tube with flange

  • Pre-loaded on one side
  • Solid aluminium flange
  • For horizontal and vertical adjustments
Shop now

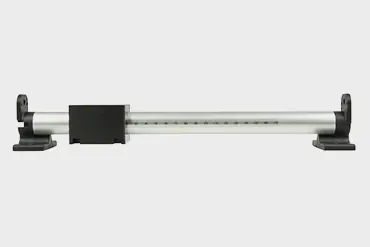

SETM easytube single-tube with measurement scale

  • Glazed, washable glazing
  • Multi-position clamp
  • Available with/without lead screw
Shop now

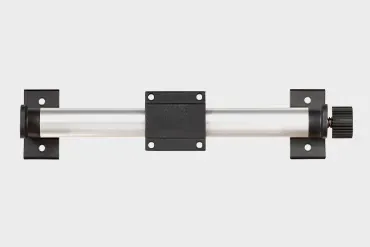

drylin linear unit with aluminium shaft, central carriage and end mounts.

Single-tube guide SETC easytube "light"

  • Very light linear carriage
  • Also available as flanged version
  • Easy assembly
Visit the shop
Linear system accessories: mounting plate, spacer plates and a counter module.

Various accessories for easytube single units

  • Leadscrew clamp
  • Position indicator
  • Handwheels
Shop now

Selected customer application examples

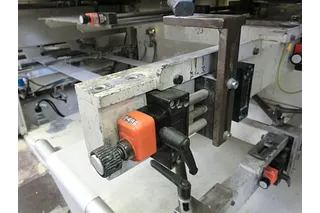

easytube single-tube axis in nappy production machines

The production of baby nappies requires very high standards of hygiene, which is why easytube's single-tube linear units are particularly well-suited for positioning tasks in nappy production plants. They reliably withstand the high quantities of dirt and dust that are handled during the processing of super-absorbents and pulp and prove themselves in the area of adhesive application points. To ensure that the adhesive application head can be moved consistently from A to B to C, depending on the product, the lead screw of the single-tube linear unit is also equipped with a measuring scale and hand wheel in this application.

Cable carriers and cables routed around a bracket in a machine.

SET easytube single tube linear unit in a bag forming, filling and sealing machine

Whether it is heat, cold, dust or moisture: the easytube single-tube linear unit enables positioning tasks in a bag forming, filling and sealing machine even under the most adverse environmental conditions. A special advantage for bag forming, filling and sealing machines: by dispensing with lubricants and maintenance, they are ideal for use in the food industry.

Machine component with an orange sensor on a packaging line.

SET easytube tube system linear units in a solar silicon plant

In combination with other igus lubrication-free products, the use of the stainless steel single-tube linear axis helps to considerably reduce the maintenance effort in this solar silicon plant.

easytube single-tube linear unit in a solar silicon plant

Further application examples with drylin linear units

Numerous customers have already been able to optimise their applications with drylin's lubrication-free linear axes, prevent machine downtime, reduce maintenance time and increase the quality of their products.
