Shop energy chains for rotary movements

List
Tile

Number of products: 15

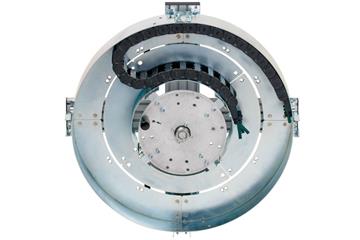

Rotary modules – for circular movements
Rotary modules – for circular movements
The igus® modular system for fast rotary applications. Integrated strain relief and cable guides within the guide trough. Maximum angle of rotation 600°.
Upon request
To the online shop

twisterchain® Series TC32, energy chain, openable along the inner radius
twisterchain® Series TC32, energy chain, openable along the inner radius
  • Inner height hi: 32mm
  • Inner width Bi: 87,5 - 150mm
  • Bend radii R: 100 - 250mm
  • Pitch: 56mm
from 225.34 EUR/m
59 different sizes available.
Ready for shipping:
38 in 72 hours
To the online shop

twisterchain® Series TC42, energy chain, openable along the inner radius
twisterchain® Series TC42, energy chain, openable along the inner radius
  • Inner height hi: 42mm
  • Inner width Bi: 87,5 - 200mm
  • Bend radii R: 100 - 250mm
  • Pitch: 67mm
from 365.96 EUR/m
224 different sizes available.
Ready for shipping:
134 in 72 hours
To the online shop

twisterchain® Series TC56, energy chain, openable along the inner radius
twisterchain® Series TC56, energy chain, openable along the inner radius
  • Inner height hi: 56mm
  • Inner width Bi: 125 - 200mm
  • Bend radii R: 150 - 400mm
  • Pitch: 91mm
from 493.19 EUR/m
64 different sizes available.
Ready for shipping:
60 in 72 hours
To the online shop

twisterchain® Series 2208, energy chain, openable along the inner and outer radius
twisterchain® Series 2208, energy chain, openable along the inner and outer radius
  • Inner height hi: 28mm
  • Inner width Bi: 52,5 - 112,5mm
  • Bend radii R: 55 - 150mm
  • Pitch: 44mm
from 182.09 EUR/m
To the online shop

twisterchain® Series 2808, energy chain, openable along the inner and outer radius
twisterchain® Series 2808, energy chain, openable along the inner and outer radius
  • Inner height hi: 32mm
  • Inner width Bi: 50 - 150mm
  • Bend radii R: 100 - 250mm
  • Pitch: 56mm
from 216.84 EUR/m
To the online shop

twisterchain® Series 3808, energy chain, openable along the inner and outer radius
twisterchain® Series 3808, energy chain, openable along the inner and outer radius
  • Inner height hi: 42mm
  • Inner width Bi: 50 - 200mm
  • Bend radii R: 100 - 250mm
  • Pitch: 67mm
from 360.83 EUR/m
To the online shop

twisterchain® Series 4008, energy chain, openable along the inner and outer radius
twisterchain® Series 4008, energy chain, openable along the inner and outer radius
  • Inner height hi: 56mm
  • Inner width Bi: 50 - 200mm
  • Bend radii R: 150 - 400mm
  • Pitch: 91mm
from 477.89 EUR/m
To the online shop

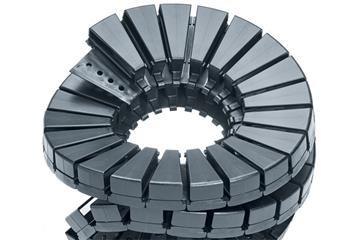

twisterband TB12.23.9, "easy" design opening system
twisterband TB12.23.9, "easy" design opening system
Inner height hi: 9mm
Inner widths Bi: 23mm
X1/X2: 40/140
Bend radius ≥ R: 24
Bend radius ≤ R: 35
≤ d1: 7
from 323.15 EUR/m
20 different sizes available.
Ready for shipping:
20 in 72 hours
To the online shop

twisterband TB20.44.12, "easy" design opening system
twisterband TB20.44.12, "easy" design opening system
Inner height hi: 12mm
Inner widths Bi: 44mm
X1/X2: 50/220
Bend radius ≥ R: 34
Bend radius ≤ R: 57
≤ d1: 9
from 394.82 EUR/m
21 different sizes available.
Ready for shipping:
21 in 72 hours
To the online shop

twisterband TB20.44.18, opening system closure
twisterband TB20.44.18, opening system closure
Inner height hi: 18mm
Inner widths Bi: 44mm
X1/X2: 50/220
Bend radius ≥ R: 34
Bend radius ≤ R: 57
≤ d1: 14
from 411.95 EUR/m
21 different sizes available.
Ready for shipping:
21 in 72 hours
To the online shop

twisterband TB29.27.22, opening system closure
twisterband TB29.27.22, opening system closure
Inner height hi: 22mm
Inner widths Bi: 27mm
X1/X2: 200/320
Bend radius ≥ R: 69
Bend radius ≤ R: 82
≤ d1: 17
from 371.88 EUR/m
4 different sizes available.
Ready for shipping:
4 in 72 hours
To the online shop

twisterband TB30.75.22, opening system closure
twisterband TB30.75.22, opening system closure
Inner height hi: 22mm
Inner widths Bi: 75mm
X1/X2: 90/330
Bend radius ≥ R: 44
Bend radius ≤ R: 77
≤ d1: 17
from 544.62 EUR/m
19 different sizes available.
Ready for shipping:
19 in 72 hours
To the online shop

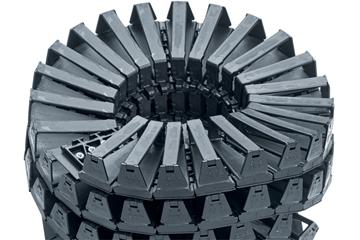

twisterband HD TBHD30.75.22, rotary movements in very small spaces
twisterband HD TBHD30.75.22, rotary movements in very small spaces
Inner height hi: 22mm
Inner widths Bi: 75mm
X1/X2: 90/330
Bend radius ≥ R: 44
Bend radius ≤ R: 77
≤ d1: 17
from 645.20 EUR/m
12 different sizes available.
Ready for shipping:
12 in 72 hours
To the online shop

twisterband HD TBHD42.135.30, rotary movements in very small spaces
twisterband HD TBHD42.135.30, rotary movements in very small spaces
Inner height hi: 30mm
Inner widths Bi: 135mm
X1/X2: 90/490
Bend radius ≥ R: 56
Bend radius ≤ R: 119
≤ d1: 20
from 1,709.03 EUR/m
To the online shop

Energy chains for rotary movements

Energy chains for rotary movements. The igus® new twisterchain® generation circular chains enabled significantly improved smooth running in combination with higher stability. The twisterchain new has a modular construction for width, height and radius, and therefore provides very flexible use in applications where rotary movements of up to 540° and more are required as well as in robust solutions.
