drylin® miniature linear axis SLN-27-03 / SLN-27-04 / SLN-27-05

Single parts made from aluminium and plastic

Absolutely lubrication-free

Lead screw with plain bearing support

Compact design

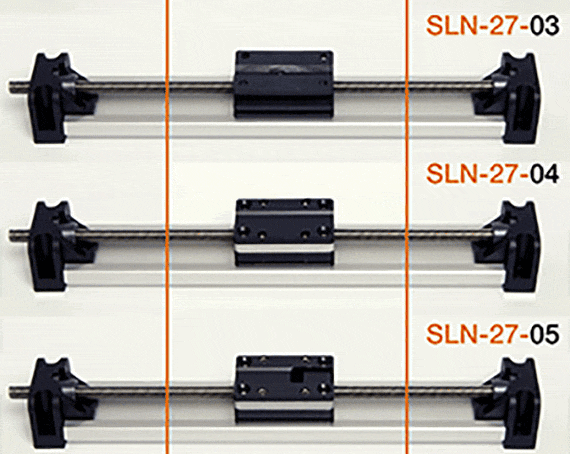

Miniature linear module
SLN-27-03 Starter model with basic carriage made of igus® polymerecon Serie
SLN-27-04 Carriage with manual clearance and height setting

SLN-27-05 Carriage with axial camber (pre-load) and manual clearance and height setting

Accessories available
Pitch M5x0.8 (0008) or high helix thread Sg 5x5 (0050)

Areas of application: Lightweight feed motion, sensor adjustment, simple handling tasks in equipment engineering and laboratory technology.
Miniature linear module drawing

Delivery program:

Technical data

Ordering number Max.
stroke length		 Weight additional
(per 100 mm)		 Max. stat.
load capacity		 Max.
speed		 Max.
drive torque
    [g] [g] axial[N] radial[N] [U/min] [Nm]
Usually shipped within 8 working days SLN-27-03-0008 250 50 40 10 40 100 0.1 Upon request Add to shopping cart
Usually shipped within 4 weeks SLN-27-03-0025 250 50 40 10 40 100 0.1 Upon request Add to shopping cart
Usually shipped within 4 weeks SLN-27-03-0051 250 50 40 10 40 100 0.2 Upon request Add to shopping cart
Usually shipped within 4 weeks SLN-27-03-0127 250 50 40 10 40 100 0.3 Upon request Add to shopping cart
Usually shipped within 4 weeks SLN-27-03-0254 250 50 40 10 40 100 0.4 Upon request Add to shopping cart
More about selected part:
3D-CAD 3D-CAD
Sample request Sample request
PDF PDF
Quote request Quote request
myCatalog myCatalog

Dimensions [mm]

Ordering number A Al H E1 E2 E3 l hw lt lb ts tg T d2 l2 ha
  ±0,2 -0,1 ±0,2 ±0,15 ±0,15 ±0,15   ±0,2 ±0,2
Usually shipped within 8 working days SLN-27-03-0008 28 35 22 20.5 15 28 77 22 21 5.5 3.5 3,2 M5 5 15 14.5 Upon request Add to shopping cart
Usually shipped within 4 weeks SLN-27-03-0025 28 35 22 20.5 15 28 77 22 21 5.5 3.5 3,2 6,35x2,54 6,35 15 14.5 Upon request Add to shopping cart
Usually shipped within 4 weeks SLN-27-03-0051 28 35 22 20.5 15 28 77 22 21 5.5 3.5 3,2 6,35x5,07 6,35 15 14.5 Upon request Add to shopping cart
Usually shipped within 4 weeks SLN-27-03-0127 28 35 22 20.5 15 28 77 22 21 5.5 3.5 3,2 6,35x12,7 6,35 15 14.5 Upon request Add to shopping cart
Usually shipped within 4 weeks SLN-27-03-0254 28 35 22 20.5 15 28 77 22 21 5.5 3.5 3,2 6,35x25,4 6,35 15 14.5 Upon request Add to shopping cart
More about selected part:
3D-CAD 3D-CAD
Sample request Sample request
PDF PDF
Quote request Quote request
myCatalog myCatalog
