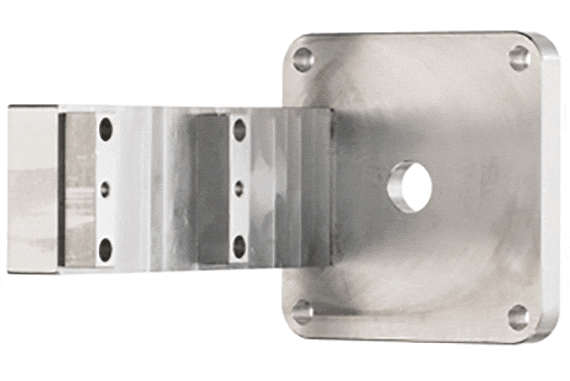

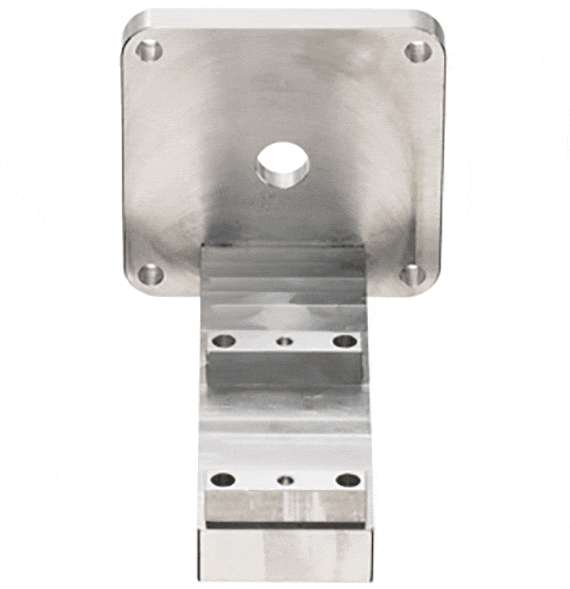

ZLW – NEMA motor flange, standard

ZLW motor flange standard product range

Finally! Fix your NEMA motor to our ZLW toothed belt drive with a standard connection.

2 base plate lengths for each NEMA motor flange; others on request

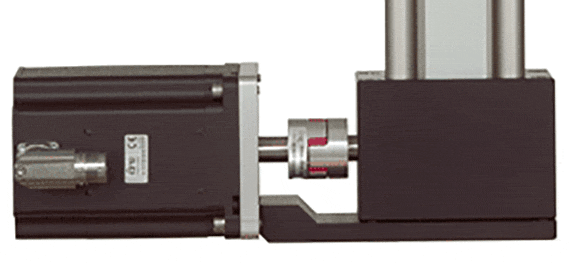

S model (short) matching the igus® claw coupling

Choose fitting toothed belt drive:

Linear actuator ZLW Low Cost

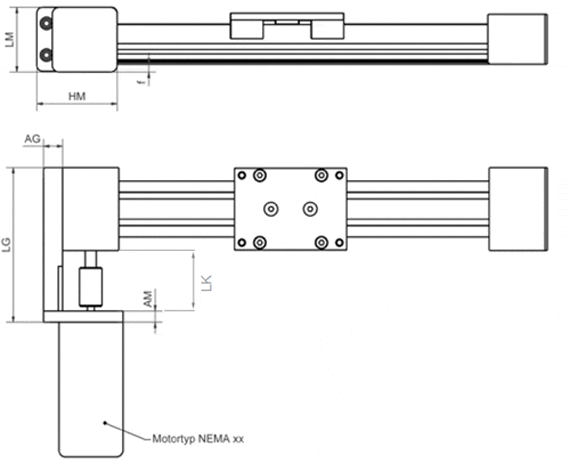

Part. No.   Base plate     Motor flange
  AG LG LK AM HM LM f
Usually shipped within 1 working day MF-0630-NEMA23-L 12 110.5 46.5 10 59 56 17 149.54 EUR Add to shopping cart
Usually shipped within 8 working days MF-1040-NEMA23-L 17 138 54 10 70.7 56.4 7 149.71 EUR Add to shopping cart
Usually shipped within 8 working days MF-1040-NEMA34-L 17 138 54 10 85 85 20.5 85.49 EUR Add to shopping cart
Usually shipped within 8 working days MF-0630-NEMA23-S 12 99.5 35.5 10 59 56 17 70.56 EUR Add to shopping cart
Usually shipped within 8 working days MF-1040-NEMA34-S 17 119 35 10 85 85 20.5 149.71 EUR Add to shopping cart
More about selected part:
3D-CAD 3D-CAD
Sample request Sample request
PDF PDF
Quote request Quote request
myCatalog myCatalog

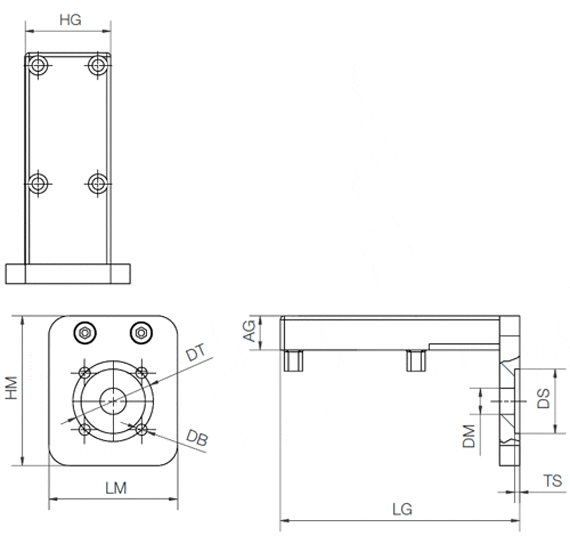

ZLW – Individual motor flange

Order no. suitable for Base plate Motor mounting plate
LG HG AG HM LM DT DM DS TS DB
MF-1040-xx ZLW-1040/ZLW-1080 138 44 77 * * * * * * *  Enquiries
MF-0630-xx-xx ZLW-0630 110,5 28 12 * * * * * * *  Enquiries
* Please specify values according to motor type

More information:

drylin® ZLW - Toothed belt axis
Usually shipped within 1 working day
Usually shipped within 8 working days
Usually shipped within 4 weeks
