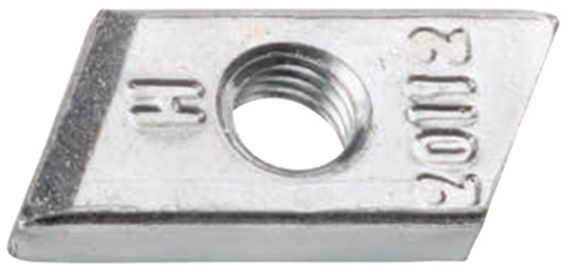

Slot nuts for mounting

For the drylin® W high-profile rail, slot nuts offer variable ways of fastening sensors and initiators, for example. The robust profile rail is the basis of SAW linear modules as well as ZLW toothed belt axes and has up to 5 T-slots for mounting slot nuts. Moreover, slot nuts are used as a fastening option in the case of drylin® Q linear carriages. Roll-in slot nuts are available for retrofitting in closed T-slots.

Variable positionable

Ideal for drylin® E limit and reference switches

Suitable for T-slots of the drylin® WSX high-profile rail

Secure retention

Can be retrofitted

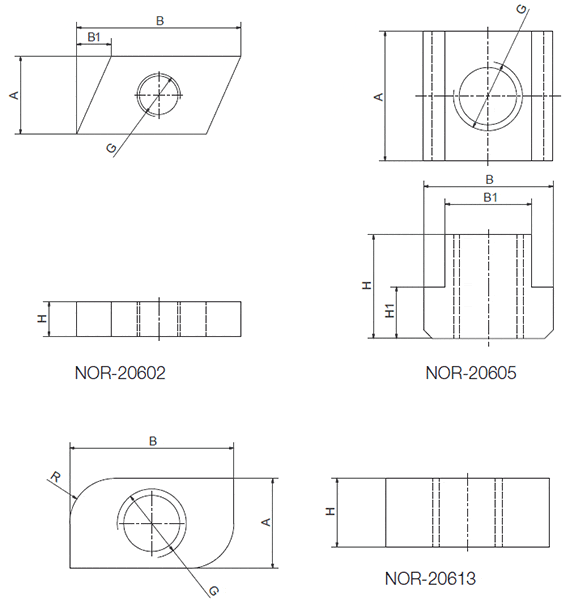

Part No.	Rail profile	Linear module
NOR-20602	WSX-06-30	SAW-0630, SAWC-0630, ZLW-0630
NOR-20602	WSX-10-40	SAW-1040, SAWC-1040, ZLW-1040
NOR-20602	WSX-10-80	SAW-1080, ZLW-1080
NOR-20602	AWMQ-12/20	QWE-01-12, QWE-01-20
NOR-20602	WSX-16-60	SAW-1660, ZLW-1660 (side slots)
NOR-20605	WSX-16-60	SAW-1660, ZLW-1660 (bottom slot)
