Carbon linear systems

Extremely light and extremely tensile - these specifications are combined in our tribologically optimised drylin® linear systems made of plastic and carbon. Whether as guidance or linear axis: all systems are 100% lubrication-free and maintenance-free.

High-strength carbon manufactured using the pultrusion process
Tribologically optimised drylin® W rail profile made of carbon
All-plastic carriage made from lubricant-free iglidur® L250
Extreme weight saving: 25% lighter than aluminium, 75% lighter than steel
Available as linear guide or with drive (spindle / toothed belt)
High strength and robust
Deflection stations with dry-running xiros ball bearings with glass or plastic balls

Contact an expert

Carbon ZLW

Carbon system options

drylin® linear guide made of carbon

W profile linear guide made of carbon/solid plastic

Extremely light and tensile carbon profile
Tribologically optimised
All-plastic carriage made of iglidur® L250

toothed belt axis made of carbon

drylin® ZLW-toothed belt axis made of carbon fibre

Completely metal-free design
Drive: Neoprene toothed belt with GF reinforcement
stroke length max. 1,000 mm

linear modules made of carbon

drylin® SAW linear module made of carbon fibre

drylin® W-profile made of carbon fibre
Drive: trapezoidal and steep thread
Lightest version with carbon, solid plastic, aluminium spindle

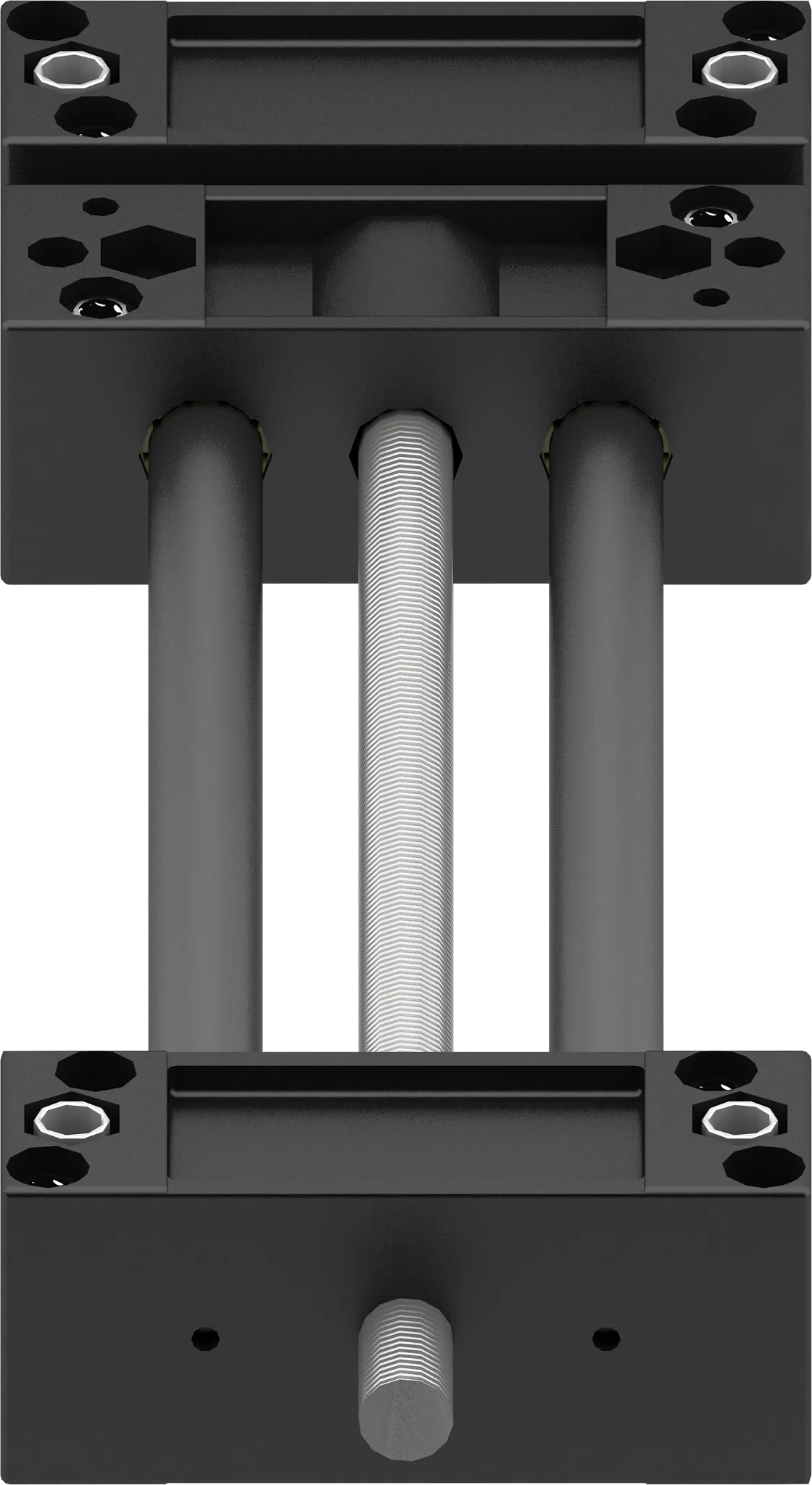

linear modules with carbon round shafts

drylin® SHTP-linear module with carbon round shafts

Very light thanks to hollow carbon shafts and solid plastic
Ideal for multi-slide solutions, including reverse
Configurable with accessories for manual and electric adjustments

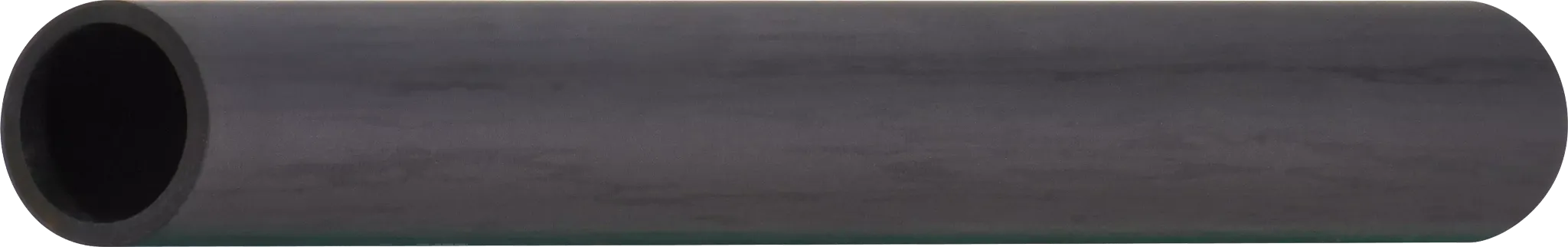

Carbon round shaft

drylin® CWM carbon round shaft

Very light due to hollow shaft geometry
Hollow chamber for supply lines
UCU surface (unidirectional/cross-winding/unidirectional)
