Energy supply systems for catwalks

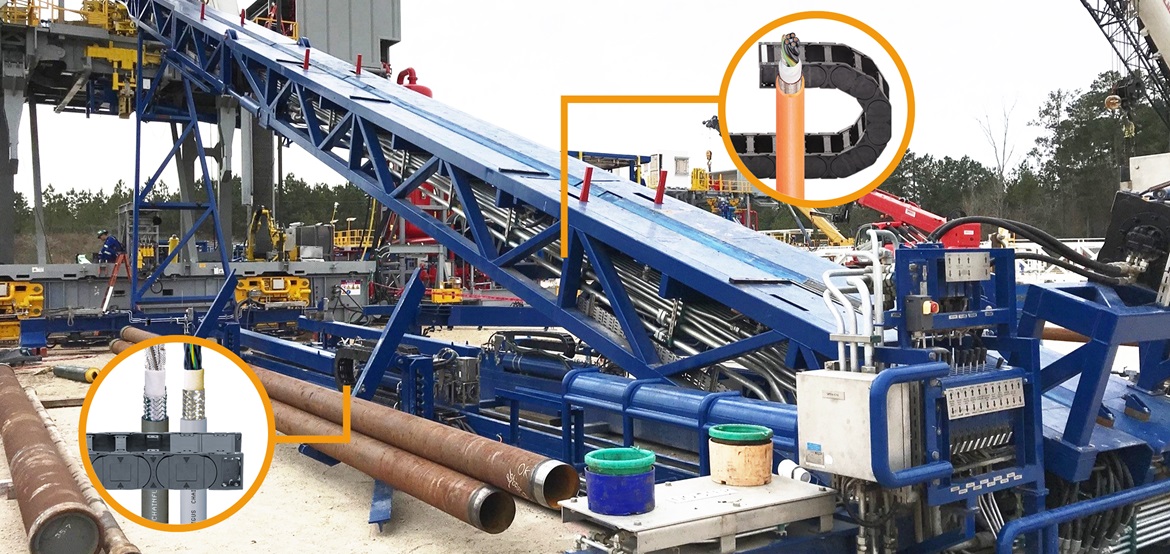

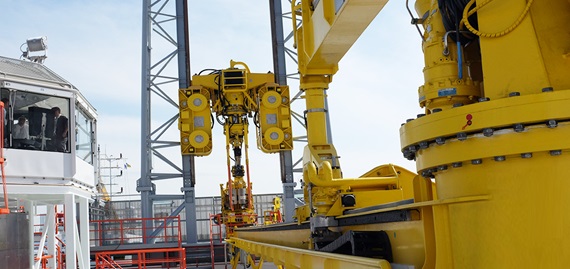

A catwalk is used to move the drill pipe to the working platform (drill floor). The pipe is then lifted into the finger platform (finger board) by the pipe handler or the top drive and stored temporarily. To push it up, small carriages run along the ramp. These are often operated with hydraulic cables that are guided in energy chains.

In addition, e-chains are found on various telescopic units in which sensor or motor cables have to be moved.

e-chain E4.80

• The interior separation modular system increases the service life of your cables by up to a factor of 4
• For long travels up to 400m and fill weights up to 80kg/m

Servo cable CF27

• For heaviest duty applications
• Almost complete resistance to oil (based on DIN EN 50363-10-2)
• Flame-retardant and UV-resistant

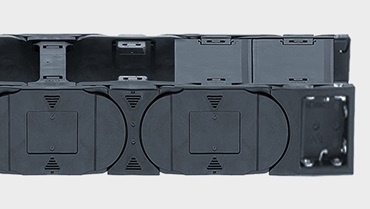

e-chain E4.56

• The interior separation modular system increases the service life of your cables by up to a factor of 4
• For long travels up to 400m and fill weights up to 62 kg/m

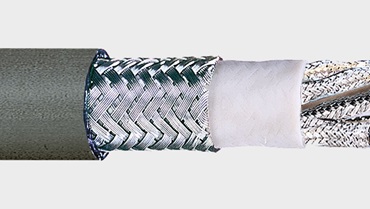

Data cable CF112

• For heaviest duty applications
• Almost complete resistance to oil (based on DIN EN 50363)
• Flame-retardant and UV-resistant

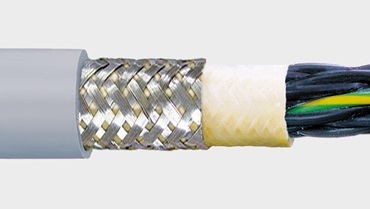

Control cable CF78.UL

• For heavy-duty applications
• Almost complete resistance to oil (based on DIN EN 50363)
• Flame-retardant and UV-resistant
