drylin® - trapezoidal lead screws made from aluminum, coated

  • Thread: right- or left-hand
  • Material: Aluminium, coated
  • Length and machining according to customer drawing
  • The tensile/compressive strength of the lead screw material
    EN AW6060 is 160 MPa per mm² (elongation limit 0.2 mm)

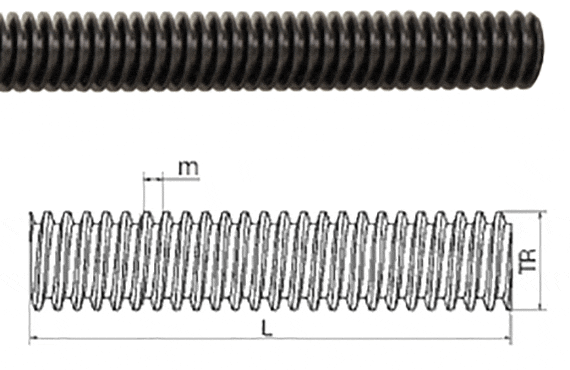

L = Length
TR = thread outer diameter
m = pitch
Lead-free - According to (RoHS) 2002/95/EG

Trapezoidal threaded spindle made of aluminium, coated

Dimensions [mm]

Part No. Thread Thread
direction		 Material TR Pitch
m		 Max. length L
[mm]
PTGSG-10X2-01-R-AL TR10X2 right aluminium 10 2 1000 204.54 EUR Add to shopping cart
Usually shipped within 8 working days PTGSG-12X3-01-R-AL TR12X3 right aluminium 12 3 1000 177.47 EUR Add to shopping cart
Usually shipped within 8 working days PTGSG-16X4-01-R-AL TR16X4 right aluminium 16 4 1000 177.95 EUR Add to shopping cart
Usually shipped within 8 working days PTGSG-18X4-01-R-AL TR18X4 right aluminium 18 4 2000 177.95 EUR Add to shopping cart
Usually shipped within 8 working days PTGSG-20X4-01-R-AL TR20X4 right aluminium 20 4 2000 255.68 EUR Add to shopping cart
Delivery time on request PTGSG-10X2-01-L-AL TR10X2 left aluminium 10 2 1000 245.45 EUR Add to shopping cart
Delivery time on request PTGSG-12X3-01-L-AL TR12X3 left aluminium 12 3 1000 158.04 EUR Add to shopping cart
Delivery time on request PTGSG-16X4-01-L-AL TR16X4 left aluminium 16 4 1000 213.55 EUR Add to shopping cart
Delivery time on request PTGSG-18X4-01-L-AL TR18X4 left aluminium 18 4 2000 219.58 EUR Add to shopping cart
Delivery time on request PTGSG-20X4-01-L-AL TR20X4 left aluminium 20 4 2000 306.81 EUR Add to shopping cart
More about selected part:
3D-CAD 3D-CAD
Sample request Sample request
Quote request Quote request
myCatalog myCatalog

Matching lead screw nuts:

Bearing blocks:

Usually shipped within 8 working days
Delivery time on request
