igus® solutions for the oil and gas industry

Moving energy supply systems that function under extreme conditions

Dirt, saltwater, vibrations, extreme temperatures, high levels of mechanical stress and the risk of explosion are the most frequently occurring problems that impair the performance of drilling equipment and other devices used for oil and gas extraction. In such surroundings, where downtimes are costly, the energy chains from igus® offer the performance characteristics needed to ensure smooth and continuous operation.


New from April 2020

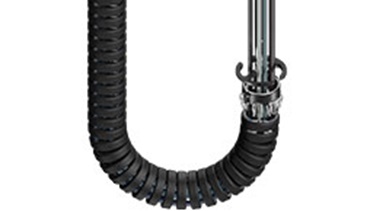

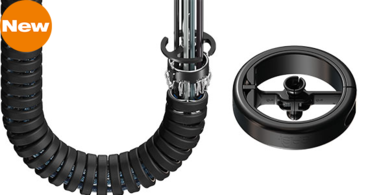

Modular e-loop energy chain system

In order to safely and reliably guide cables in hanging applications, igus has developed the e-loop as an alternative to the service loop - ideal for three-dimensional applications.

The e-loop combines the advantages of a polymer energy chain with those of a high-strength pull rope which is incorporates. Inside the chain, the pull rope transfers the pull force to the mounting brackets and the structure. As a result, the cables are kept completely free of strain.

The modular e-chain made of high-performance polymer always enables a defined bend radius and easily copes with vibrations and impacts.

More information about the e-loop
.

.

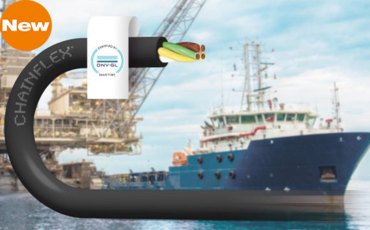

Cables in e-chains from the only supplier worldwide with DNV-GL approval

 ▲ Tech up

  • Safety with defined materials for the maritime sector
  • Clear indication of durability in moving applications
▼ Cost down
  • Minimisation of the risk of failure
  • 36-month guarantee & free price check

More information about DNV-GL approval
.

Harnessed e-chains and cables designed especially for harsh environments

 ▲ Tech up

  • Robust and corrosion-free: e-chains for harsh environments
  • Application-optimised and ready to install
▼ Cost down
  • Save 68% assembly time
  • Save 89% procurement time

More information about heavy-duty harnessing

Your benefits:

  • Systems supplier for ready-to-connect complete systems
  • 100% corrosion-free, seawater-resistant and tried-and-tested for heavy duty applications
  • Offshore suitability based on many years of experience
  • Longer service life, e.g. compared to service loops
  • Weight-saving of up to 70% compared with steel chains
  • Detectable components (smart plastics) for prediction of maintenance times
  • Cables specially developed for e-chains® with corresponding certificates for the oil and gas industry
  • Lower costs and increase the safety of equipment
Contact experts now

Energy chains e-loop in top drive systems

White paper: oil & gas

White paper:
high-performance polymer solutions for drilling rigs

The power of polymer has made energy chains and energy supply systems a valued asset to the oil and gas industry. What are the advantages of igus energy supply systems in top drive systems? What differentiates them from other solutions, such as festoons or service loops?

Download free PDF now

Suitable products for the oil and gas industry

Modular e-loop energy chain system

Modular e-loop energy chain system

  • Can be opened and closed as required
  • All parts are individually replaceable
  • Simple maintenance

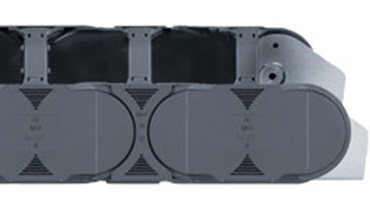

e-chain® Series E4.112

e-chain® Series E4.112

  • Robust and up to 70% lighter than steel
  • Special interior separation system prevents parts from falling out
  • Modular design

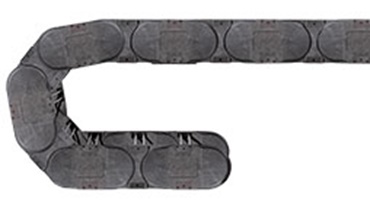

e-chain® Series E4.350

e-chain® Series E4.350

  • Tried and tested for heavy loads up to 650 kg/m
  • For example, for use in the case of cantilever skids
  • Up to 50% lighter than steel chains

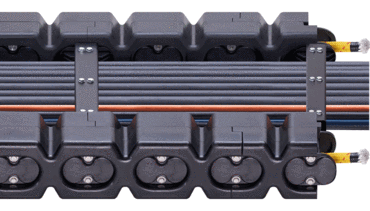

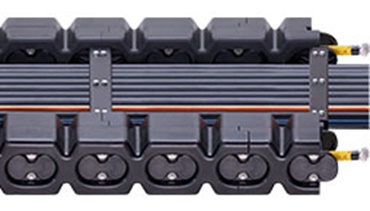

Offshore chain (OSC)

Offshore chain (OSC)

  • Modular design guarantees that cables can be reached
  • Tensile forces up to 187 kN possible
  • Cable protection in extremely adverse conditions

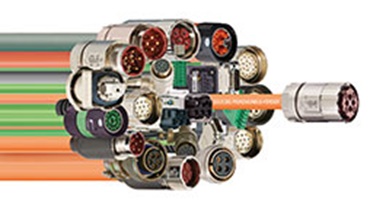

Harnessed cables

Harnessed cables

  • Ready-to-connect cables with industry-specific connectors
  • Harnessing of EX connectors
  • Tested according to corresponding industry standards

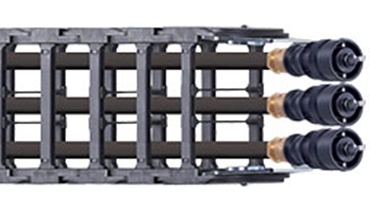

Harnessed energy supply modules

Ready-to-connect energy chain systems

  • 95% less harnessing time
  • Reduce assembly time
  • Plug & play solutions, e.g. for top drives

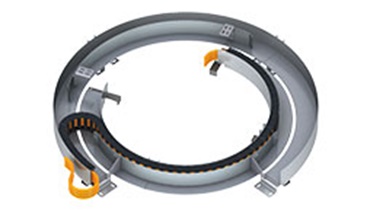

RBR rotating energy supply

RBR rotating energy supply

  • Rotation systems with up to 900° rotation
  • Easy integration into the customer's structure
  • Extended system guarantee possible

Application examples of our customers

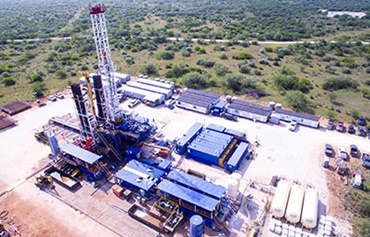

Land rig

Installation times and maintenance work reduced on fully automated land rig

Complete systems from a single source for all moving machines such as pipe handling devices and top drives on this full automated land rig

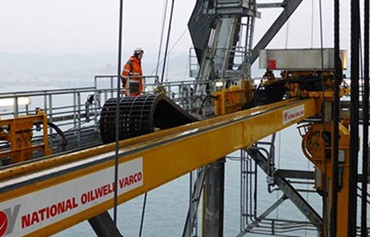

Pipe racker systems

Successful for many years in offshore use

Even under extremely high loads and in the rough conditions on oil rigs, corrosion-free, lightweight energy chains of the E4.1 series are able to demonstrate their strengths.

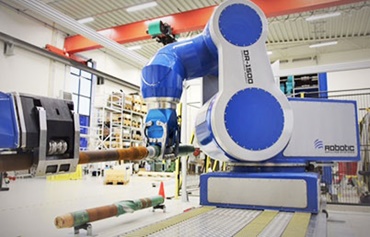

Robots

Cost-effective complete systems shorten and facilitate installation

Here, among other things, several RBR systems are used with energy chains in the joints of the robot, whereby the energy chains are responsible for the supply of energy, data and media. Technical development, which was very complex due to the extremely limited installation space, was carried out by theigus® project engineering team.

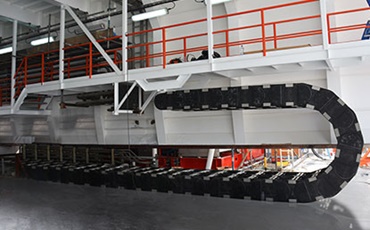

Cantilever skids

Weight-saving and cost-effective

In the case of cantilever skids, heavy-duty applications are a basic prerequisite and can be implemented with the E4.350 series in a cost-effective and weight-saving manner.

Tests: FAT (Factory Acceptance Test) and function test

FAT: E4.350 energy chain as hook solution for installations in the oil and gas industry
Function test: igus® RBR rotation systems in bucket-wheel excavators

Services

Engineering service

Engineering service

From the first sketch to installation and on-site commissioning

Assembly service

Assembly service

Installation of energy chains with all components, with guarantee

Test laboratory

Quality

Product quality is regularly checked and certified
