Encoder cables


What are encoder cables?

Encoder cables, or measuring system cables are required to transmit signals between position sensors of servo motors and their control systems in industrial plant and machines. These signals usually include, among other things, information about the position and speed of the machine.

The various signals generated by the angular encoder map the exact movement of the motor and are transmitted along with this movement. As a rule, not only the data of the encoder system is transported in the cable, but also the supply of the encoder is realised.
  • Electric design according to manufacturer standards
  • Bending radii up to 10xd
  • Jacket materials: PVC, iguPUR, PUR or TPE
Contact an expert
encoder cable

Encoder cable options

chainflex® encoder cable CF884

chainflex® measuring system cable CF884
  • Requirements: For flexing applications
  • Outer jacket: PVC
Visit the shop

chainflex® encoder cable CF211

chainflex® measuring system cable CF211
  • Requirements: For medium duty applications
  • Outer jacket: PVC
Visit the shop

chainflex® encoder cable CF113.D

chainflex® measuring system cable CF113.D
  • Requirements: Extremely heavy duty applications
  • Outer jacket: PUR
Visit the shop

chainflex® encoder cable CF111.D

chainflex® measuring system cable CF111.D
  • Requirements: For medium duty applications
  • Outer jacket: PUR
Visit the shop

chainflex® encoder cable CF11.D

chainflex® measuring system cable CF11.D
  • Requirements: Extremely heavy duty applications
  • Outer jacket: TPE
Visit the shop

chainflex® encoder cable CFROBOT4

chainflex® measuring system cable CFROBOT4
  • Requirements: For twistable applications
  • Outer jacket: PUR
Visit the shop

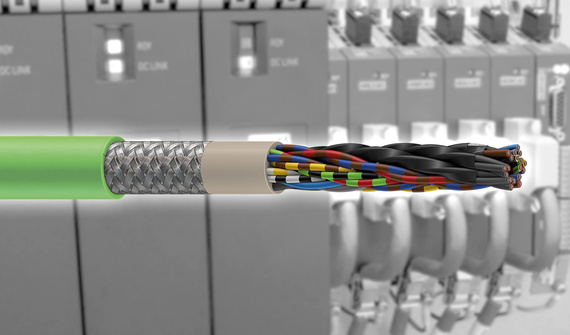

chainflex CF113

Structural differences by manufacturer

There are various measuring system manufacturers on the market. The electrically identical design elements also highlight the differences among the manufacturers. Core cross-section combinations, conductor colours and element shields vary widely from manufacturer to manufacturer. At igus, we harmonise the important elements (outer jacket, shielding, inner jacket, and much more) to energy chain movement. This allows us to optimise durability.

DriveCliq – the Siemens standard

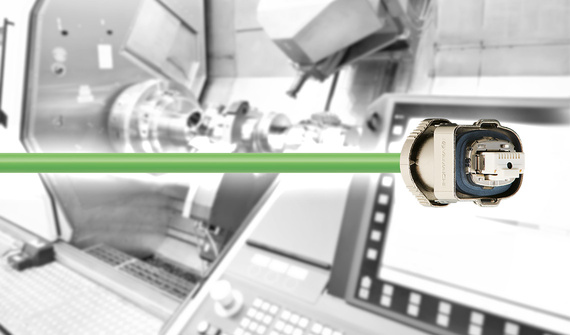

DriveCliq is a digital encoder interface from Siemens. The standard has become publicly available and can be used by other manufacturers. Unlike rotary encoders commonly used in earlier generations, this encoder system is equipped with a CAT5 Ethernet element and two thick supply cores. Connection is usually with a connector solution by Yamaichi that, much like an RJ 45 connector, carries data, but has power contacts to the right and left of the notch. This pin arrangement is also in an IP20 housing for the control cabinet or an IP65 housing for the field. An M12 solution has established itself among the connectors because it is more robust and compact and eliminates the need for an expensive connection coupling.
drivecliq

drivecliq

DriveCliq – the machine tool standard

Several years ago, there was a widespread move away from conventional analogue encoder systems to DriveCliq technology, which was new at the time. We were able to support major customers such as WALDRICH (based in Coburg) in this move. Challenges arose for the new plug technology in conjunction with long cable lengths. We worked together to develop a solution for the extremely robust M23 round signal connector that was much better than the original solution in its machinability and data transmission. So if you are looking for a solution and can't find it in the catalogue, contact us, and we will take a close look at your application.

Do you need connectors with your cable?

drive encoder cables
Shop our drive cables

Are you familiar with our online tools?

Simply find and choose a suitable type, calculate its service life, and order it online

Product finder

Product finder

Get to just the right cable quickly
Service life calculator

Service life calculator

Calculate the service life of any chainflex cable
Copper surcharge calculator

Copper surcharge calculator

Calculate the current copper surcharge
chainflex configurators

Configurator for special cables

Configure your individual cable in just three minutes

Expert's tip

Inner jacket – why it is important for long travels and small radii

Our inner jacket, located between the core structure and the shielding, gives us a unique design detail for our high-end cables. It protects and guides sensitive cores and supports the shield. Both of these functions are extremely important both in long travels and small bend radii, which is just where the cable is subjected to the most extreme forces.

Are you looking for an chain for your cable?

Find your e-chain®
readychain

.....or do you require a fully harnessed version?

To the readychain


Consulting

I would be happy to answer your questions

Shipping and consultation

In person:

Monday to Friday from 8am - 8pm.

Online:

24h
